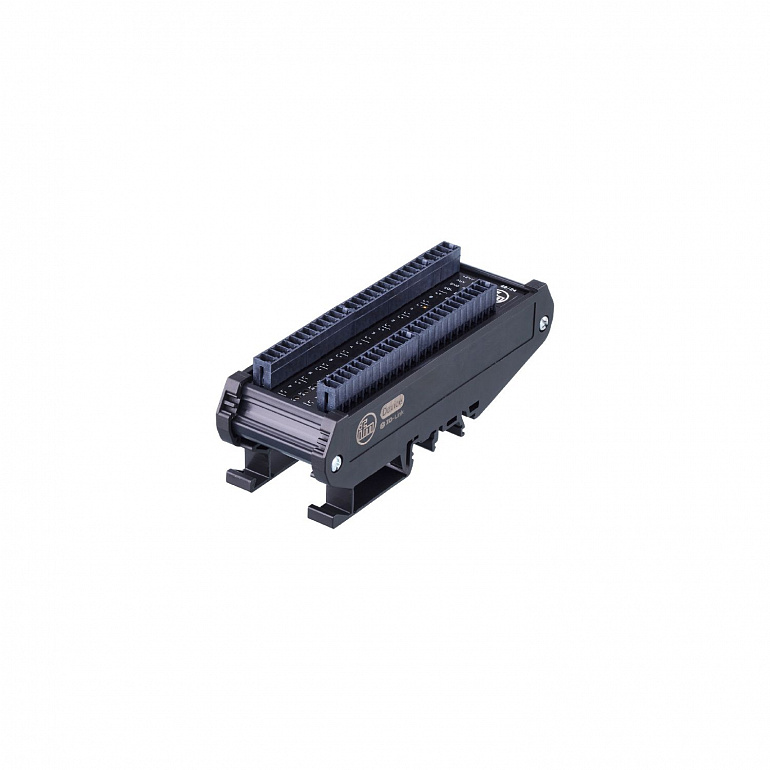

| Application |
I/O modules for use in the control cabinet or in a dust-free environment |
| Operating voltage |
18...30 DC |
| Current consumption |
50...1050; (US) |
| Protection class |
III |
| Total number of inputs and outputs |
16 |
| Number of inputs and outputs |
Number of digital inputs: 16; Number of digital outputs: 16 |
| Number of digital inputs |
16; (configurable) |
| Input circuit of digital inputs |
PNP |
| Sensor supply of the inputs |
US |
| Voltage supply |
18...30 |
| Number of digital outputs |
16; (configurable) |
| Max. current load outputs total |
1 |
| Short-circuit protection |
yes |
| Actuator supply outputs |
US |
| Communication interface |
IO-Link |
| SDCI standard |
IEC 61131-9 |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| Profiles |
| Common - I&D | Identification and Diagnosis |
|
| SIO mode |
no |
| Required master port class |
A |
| Min. process cycle time |
1 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1452 |
|
| Note |
| For further information please see the IODD PDF file at "Downloads" |
|
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...70 |
| Max. relative air humidity |
80; (40 °C; 50 % non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 20 |
| EMC |
| EN 61000-6-2 | | | EN 61000-6-3 | | | IEC 61131-9 | | | IEC 61131-2 Type 3 | |
|
| Shock resistance |
| DIN EN 60068-2-27 | | | ISO 16750-3 | |
|
| Vibration resistance |
| DIN EN 60068-2-64 | | | DIN EN 60068-2-6 | |
|
| Weight |
161.55 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (GS32, TS15, TH35 (EN 60715)) |
| Dimensions |
125 x 43 x 43.6 |
| Material |
housing: PA black |

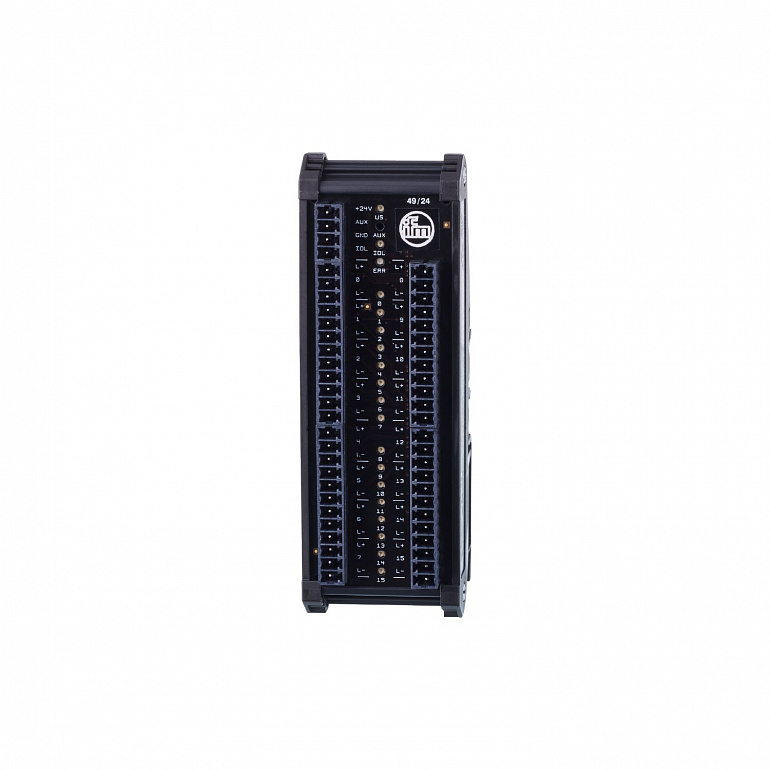

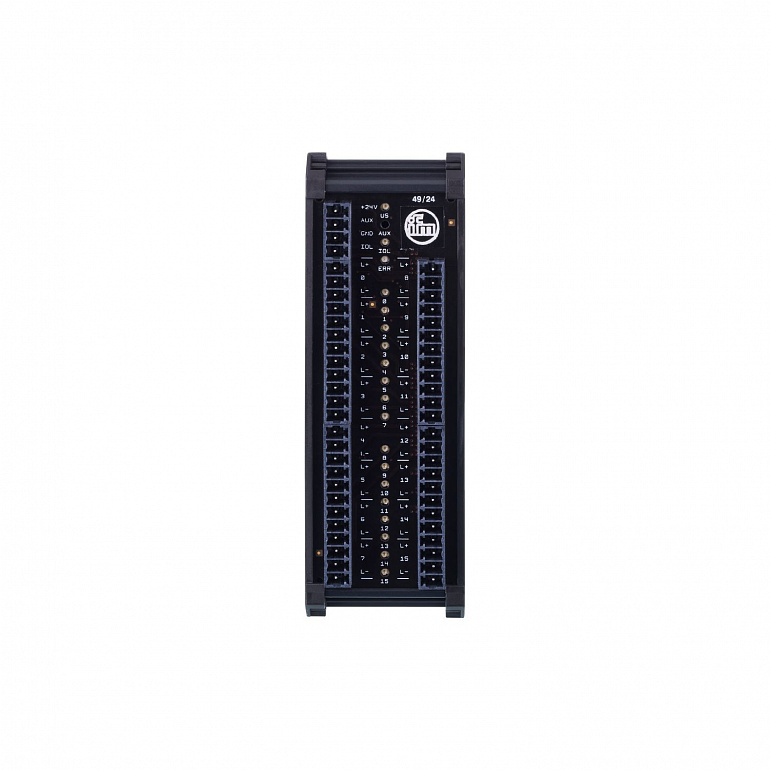

| Display |
| Power | 2 x LED, green | | fault | 1 x LED, red | | Function | 16 x LED, yellow |
|
| Pack quantity |
1 pcs. |
|

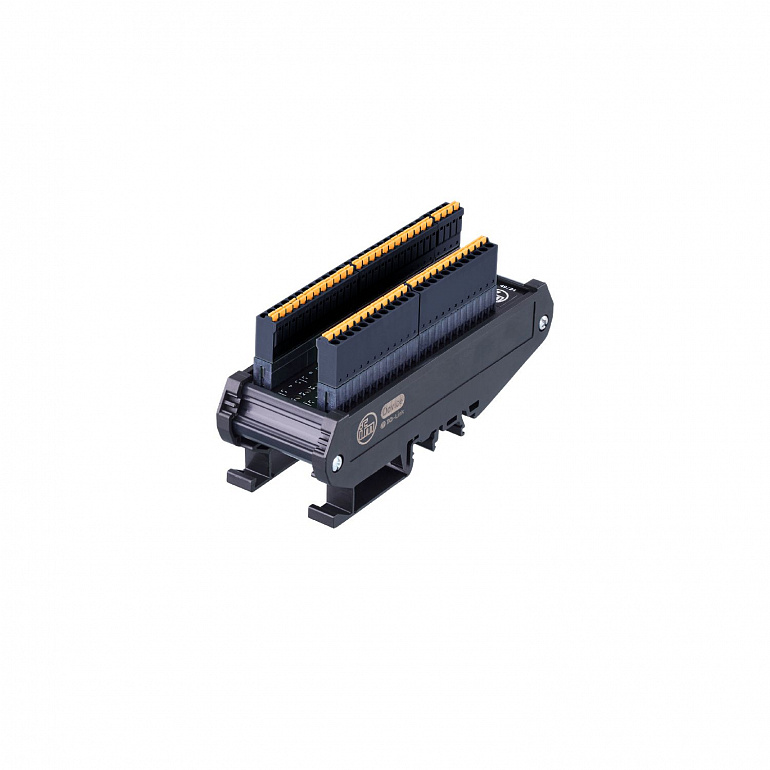

Connector: terminals |
