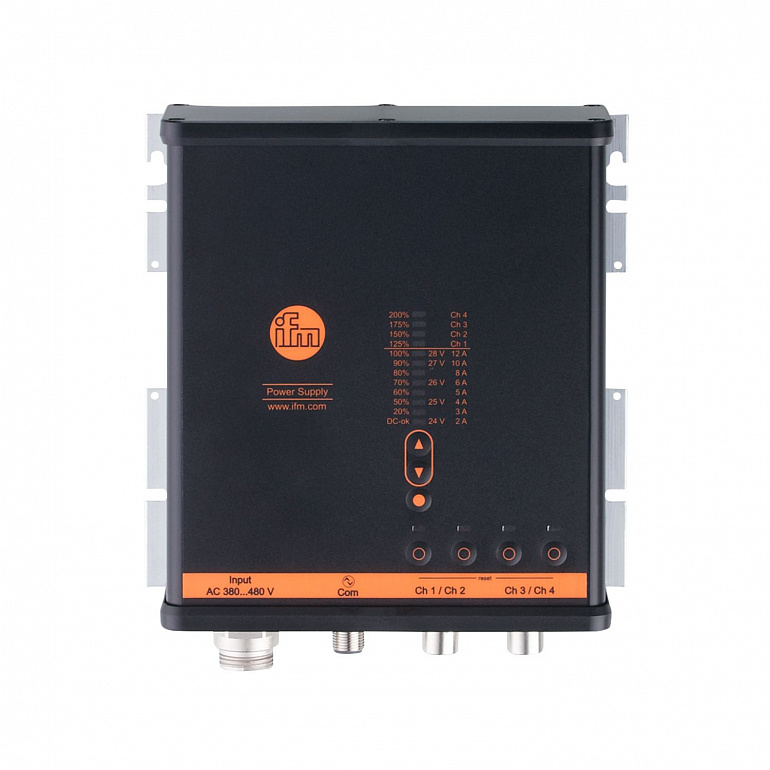

| Nominal voltage AC |
400 / 480 |
| Nominal frequency AC |
50...60 |
| Input voltage range AC |
323...552 |
| Output voltage DC |
24...28 |
| Protection class |
I |
| Max. power-on delay time |
12 |
| Output voltage tolerance |
0.2 |
| Max. output current at min. output voltage |
20.8 |
| Max. output current at max. output voltage |
17.8 |
| Output power (permanent) |
500 |
| Output power (peak) |
1000 |
| Power factor (nominal voltage 400 V AC / 50 Hz) |
0.94 |
| Power factor (nominal voltage 480 V AC / 50 Hz) |
0.95 |
| Number of output circuits |
4 |
| Switch-on peak current (nominal voltage 400 V AC / 60 Hz) |
2.1 |
| Switch-on peak current (nominal voltage 480 V AC / 50 Hz) |
2 |
| Efficiency (nominal voltage 400 V AC / 60 Hz) |
94.2 |
| Efficiency (nominal voltage 480 V AC / 50 Hz) |
94 |
| Mains buffering time (nominal voltage 400 V AC / 60 Hz) |
24 |
| Mains buffering time (nominal voltage 480 V AC / 50 Hz) |
24 |
| Input current (nominal voltage 400 V AC / 60 Hz) |
1.1 |
| Input current (nominal voltage 480 V AC / 50 Hz) |
0.9 |
| Load capacitance, total |
12.5 |
| Communication interface |
IO-Link |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1 |
| Profiles |
| Common - I&D | Identification and Diagnosis |
|
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
2 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1270 |
|
| Ambient temperature |
-25...70 |
| Storage temperature |
-40...85 |
| Max. relative air humidity |
95; (relative humidity) |
| Max. height above sea level |
5000 |
| Protection |
IP 65; IP 67 |
| Degree of soiling |
3 |
| EMC |
| EN 61000-4-2 CD | 8 kV / Failure criterion A | | EN 61000-4-2 AD | 15 kV / Failure criterion A | | EN 61000-4-3 | 80 Mhz...2.7 GHz / 20 V/m Failure criterion A | | EN 61000-4-3 | 2.7 GHz...6 GHz kV / 10 V/m Failure criterion A | | EN 61000-4-8 | 50 / 60 Hz / 30 A/m Failure criterion A | | EN 61000-4-4 Burst | 4 kV / Failure criterion A | | EN 61000-4-5 Surge | 2 kV Lx / Ly / Failure criterion A | | EN 61000-4-5 Surge | 4 kV L / PE / Failure criterion A | | EN 61000-4-5 Surge | 1 kV + / - / Failure criterion A | | EN 61000-4-5 Surge | 1 kV + - / PE / Failure criterion A | | EN 61000-4-5 Surge | 1 kV + - / PE / Failure criterion A | | EN 61000-4-5 Surge | 1 kV DC-OK / PE / Failure criterion A | | EN 61000-4-6 | 0.15...80 MHz / 20 V Failure criterion A | | EN 61000-4-11 | 0 V up to 1 cycle / Failure criterion A | | EN 61000-4-11 | 40 % of V / 200 ms Failure criterion A | | EN 61000-4-11 | 70 % of V / 500 ms Failure criterion A | | EN 61000-4-11 | 0 V / 5000 ms Failure criterion C | | VDE 0160 | 1550 V / 1.3 ms Failure criterion A | | EN 55032 | Class B | | EN 55032 | Class B | | EN 55011 | Class B | | EN 61000-3-2 | | | EN 61000-3-3 | | | | | |
|
| Continuous shock resistance |
| IEC 60068-2-27 | 30 g 6 ms / 20 g 11 ms |
|
| Vibration resistance |
| IEC 600068-2-6 | 2...17.8 Hz ± 1.6mm / 17.8...500 Hz 2 g |
|
| MTTF |
27 |
| Weight |
1616.05 |
| Housing |
rectangular |
| Type of mounting |
Backplane mounting |
| Dimensions |
199.7 x 178 x 59.5 |
| Material |
housing: Aluminum Alloy; housing cap: PC; screws: steel bronzed |
| Pack quantity |
1 pcs. |
|

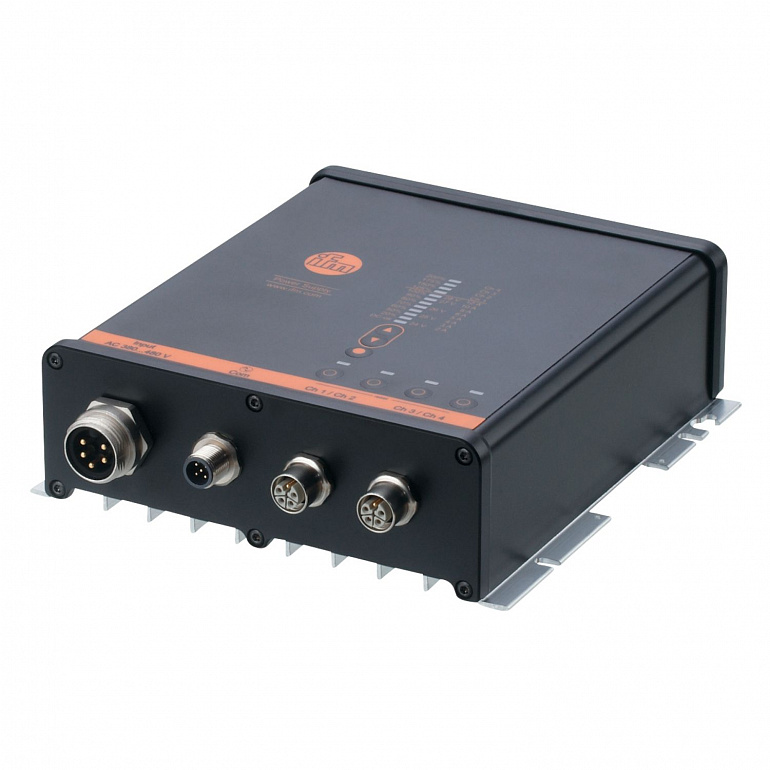

Connector: 1 x M12; coding: A; Locking: brass |
|
Connector: 2 x M12; coding: L; Locking: brass |
|
Connector: 1 x 7/8"; Locking: brass |
