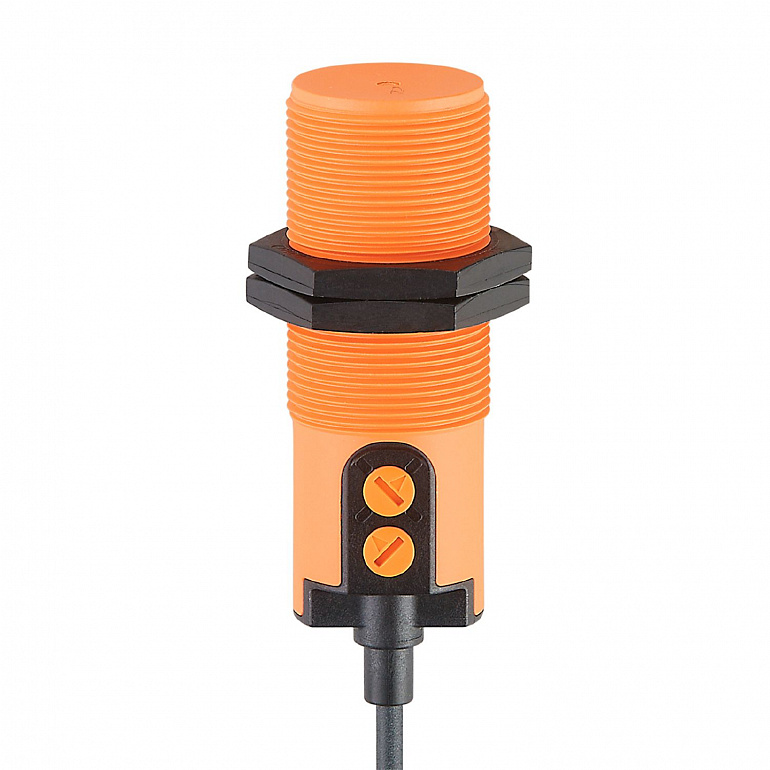

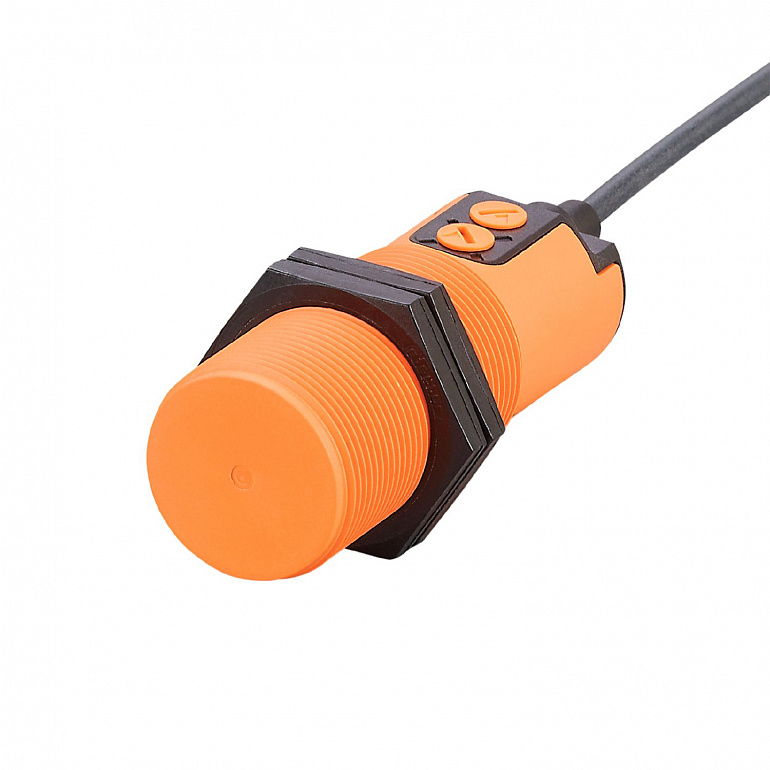

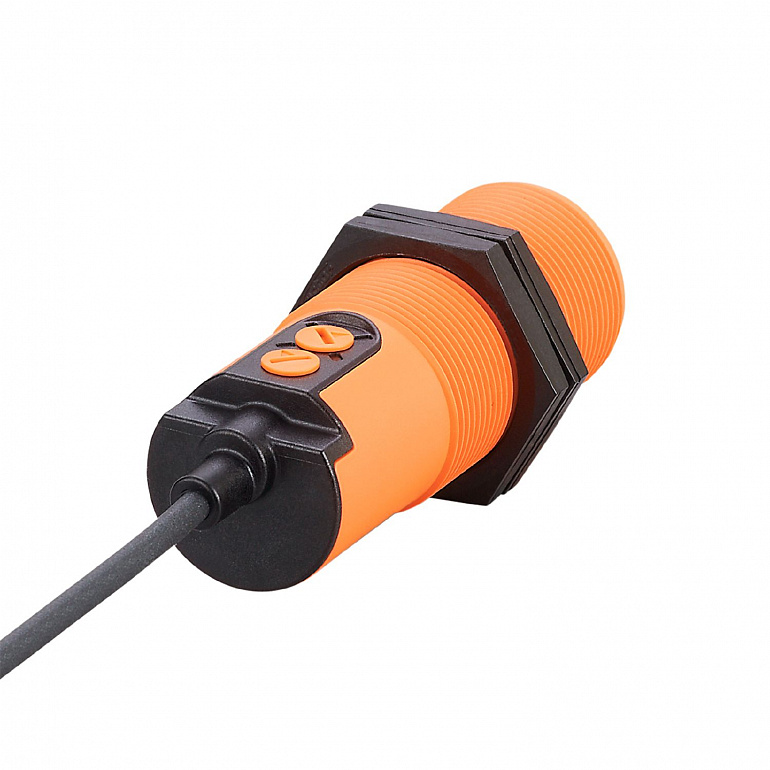

| Product characteristics |
|
| Electrical design |
NPN |
| Output function |
normally open / closed; (selectable) |
| Sensing range |
0.5...40 |
| Communication interface |
IO-Link |
| Housing |
Threaded type |
| Dimensions |
M30 x 1.5 / L = 92 |
| Application |
|
| System |
optical setting aid |
| Medium temperature |
-25...110 |
| Electrical data |
|
| Operating voltage |
10...30 DC |
| Current consumption |
< 22 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Outputs |
|
| Electrical design |
NPN |
| Output function |
normally open / closed; (selectable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
200 |
| Switching frequency DC |
30 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Monitoring range |
|
| Sensing range |
0.5...40 |
| Sensing range adjustable |
yes |
| Factory setting sensing range |
25 |
| Real sensing range Sr |
25 ± 10 % |
| Accuracy / deviations |
|
| Hysteresis |
1...15 |
| Switch-point drift |
-10...10 |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Device identification</td></tr><tr><td>Function</td><td>Multiple switching signal</td></tr><tr><td>Function</td><td>Process data variable</td></tr><tr><t |
| Required master port class |
A |
| Min. process cycle time |
20 |
| IO-Link functions (acyclical) |
application specific tag; operating hours counter; normally open / normally closed (configurable); PNP / NPN (parametrierbar); Switch point setting; Hysteresis |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>1077</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-25...80 |
| Protection |
IP 65; IP 67; IP 69K |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 61000-4-2</td><td>30 kV AD / 4 kV CD</td></tr><tr><td>EN 61000-4-3</td><td>10 V/m</td></tr><tr><td>EN 61000-4-4</td><td>2 kV</td></tr><tr><td>EN 61000-4-6</td><td>10 V</td></tr><tr><td>EN 55011</td><td>class B</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60947-5-2</td><td>1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz</td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60947-5-2</td><td>30 g 6 shocks / 11 ms half-sine (x, y, z)</td></tr></table> |
| UL approval |
<table><tr><td>Ta</td><td>-25...60 °C</td></tr><tr><td>Enclosure type</td><td>Type 1 </td></tr><tr><td>voltage supply</td><td>Limited Voltage/Current </td></tr><tr><td>UL approval number</td><td>D002 </td></tr><tr><td>File number UL</td><td>E174191 </td>< |
| Mechanical data |
|
| Weight |
278 |
| Housing |
Threaded type |
| Mounting |
non-flush mountable |
| Dimensions |
M30 x 1.5 / L = 92 |
| Thread designation |
M30 x 1.5 |
| Material |
PBT; PC; POM |
| Displays / operating elements |
|
| Display |
<table><tr><td>Switching status</td><td>1 x LED, yellow</td></tr><tr><td>Power</td><td>1 x LED, green</td></tr><tr><td>Setting aid</td><td>12 x LED, green</td></tr></table> |
| Optical setting aid |
yes |
| Accessories |
|
| Items supplied |
<table><tr><td>lock nuts: 2</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Cable: 10 m, PUR, Ø 4 mm; 3 x 0.34 mm² |
