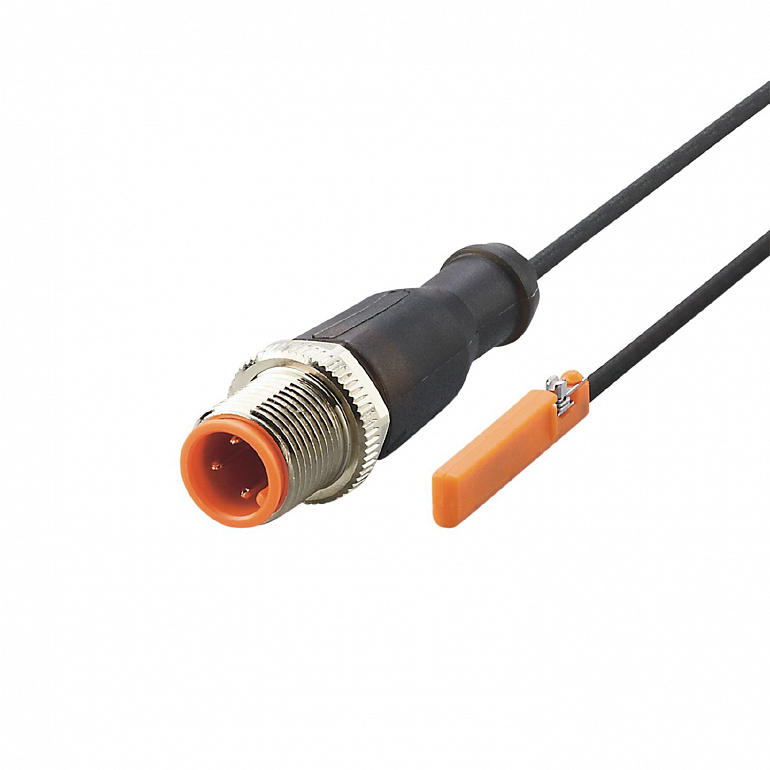

| Product characteristics |
|
| Electrical design |
PNP/NPN |
| Output function |
normally open |
| Dimensions |
26.1 x 2.8 x 5.5 |
| Electrical data |
|
| Operating voltage |
10...30 DC |
| Current consumption |
< 10 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
30 |
| Outputs |
|
| Electrical design |
PNP/NPN |
| Output function |
normally open |
| Max. voltage drop switching output DC |
4.5 |
| Minimum load current |
5 |
| Max. leakage current |
0.8 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
4000 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Monitoring range |
|
| Magnetic sensitivity |
2.8 |
| Travel speed |
> 10 |
| Accuracy / deviations |
|
| Hysteresis |
< 0.12 |
| Repeatability |
< 0.2 |
| Operating conditions |
|
| Ambient temperature |
-25...85 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 61000-4-2 ESD</td><td>- CD / 8 kV AD</td></tr><tr><td>EN 61000-4-3 HF radiated</td><td>10 V/m</td></tr><tr><td>EN 61000-4-4 Burst</td><td>2 kV</td></tr><tr><td>EN 61000-4-6 HF conducted</td><td>10 V</td></tr><tr><td>EN 55011</td><td>clas |
| Vibration resistance |
<table><tr><td>EN 60947-5-2</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>EN 60947-5-2</td><td></td></tr></table> |
| Mechanical data |
|
| Weight |
19 |
| Mounting |
flush mountable |
| Cylinder type |
C-slot cylinders |
| Dimensions |
26.1 x 2.8 x 5.5 |
| Material |
housing: PA; Fastening clamp: stainless steel |
| Displays / operating elements |
|
| Display |
<table><tr><td>Switching status</td><td>1 x LED, yellow</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection - plug |
|
| Connection |
Connector: 1 x M12; coding: A |
