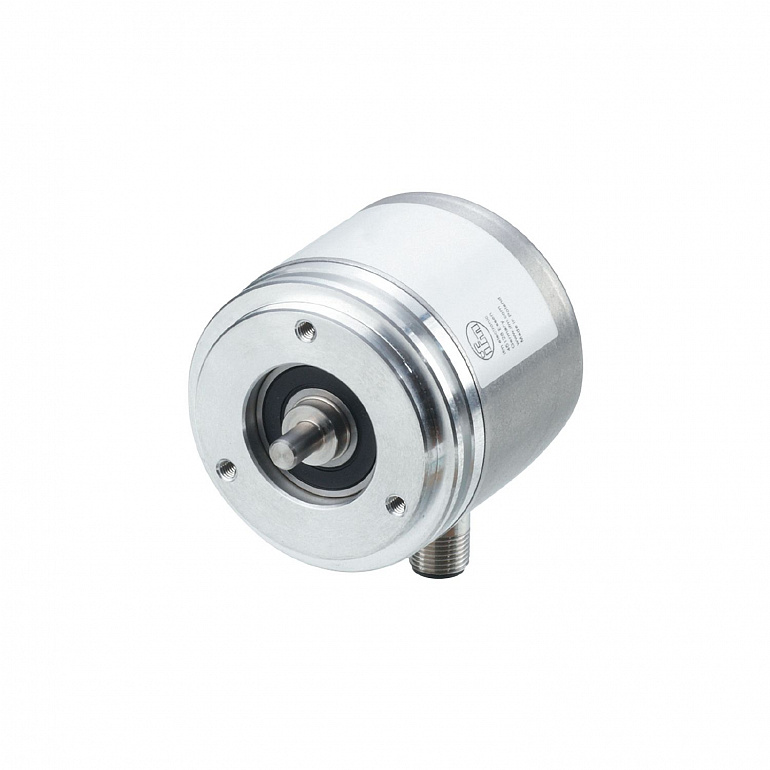

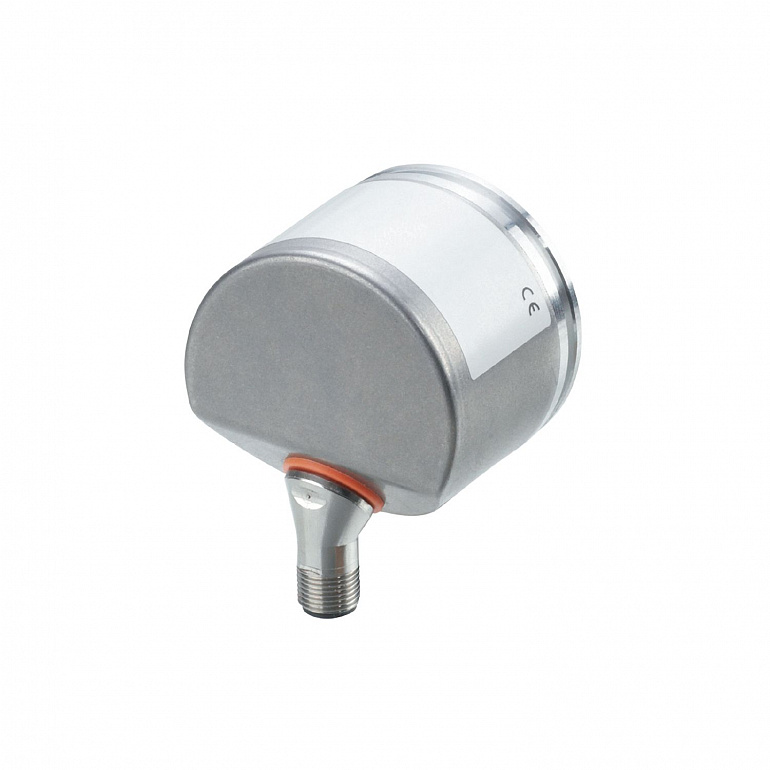

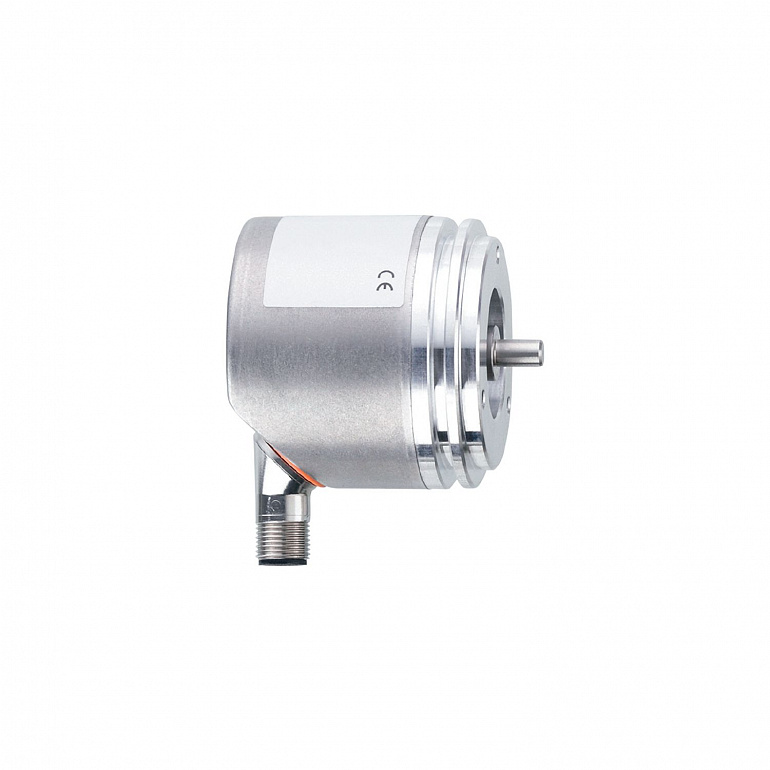

| Resolution |
4096 steps; 4096 revolutions |
| Communication interface |
SSI data interface |
| Shaft design |
solid shaft |
| Shaft diameter |
6 |
| Function principle |
absolute |
| Detection system |
magnetic |
| Operating voltage |
4.5...30 DC |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time |
500 |
| Settling time |
32 |
| Max. revolution electrical |
12000 |
| Short-circuit protection |
yes |
| Code |
Gray code; (increasing code values when turned clockwise (seen on the shaft)) |
| Code signal |
Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 422; data output; synchronous serial; TTL-compatible signal data and data (inv.) |
| Resolution |
4096 steps; 4096 revolutions |
| Accuracy |
±0.1 INL |
| Parameter setting options |
Zero point; Direction of rotation |
| Communication interface |
SSI data interface |
| Ambient temperature |
-40...85 |
| Storage temperature |
-40...85 |
| Max. relative air humidity |
95; (Condensation not permissible) |
| Protection |
IP 65; (on the housing: IP67) |
| Shock resistance |
| EN 60068-2-27 | 100 g half-sine / 6 ms |
|
| Vibration resistance |
| EN 60068-2-29 | 10 g half-sine / 16 ms |
|
| MTTF |
350 |
| Weight |
348.1 |
| Housing |
tubular |
| Dimensions |
Ø 58.6 / L = 63.5 |
| Material |
flange: aluminum; housing: stainless steel (1.4521 / 444) |
| Max. revolution, mechanical |
12000 |
| Max. starting torque |
0.01 |
| Reference temperature torque |
20 |
| Shaft design |
solid shaft |
| Shaft diameter |
6 |
| Shaft material |
|
| Max. shaft load axial (at the shaft end) |
40 |
| Max. shaft load radial (at the shaft end) |
60 |
| Fixing flange |
Synchro-flange |
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12, radial, can also be used axially; coding: A; Moulded body: stainless steel (1.4401 / 316); Maximum cable length: 100 m |
