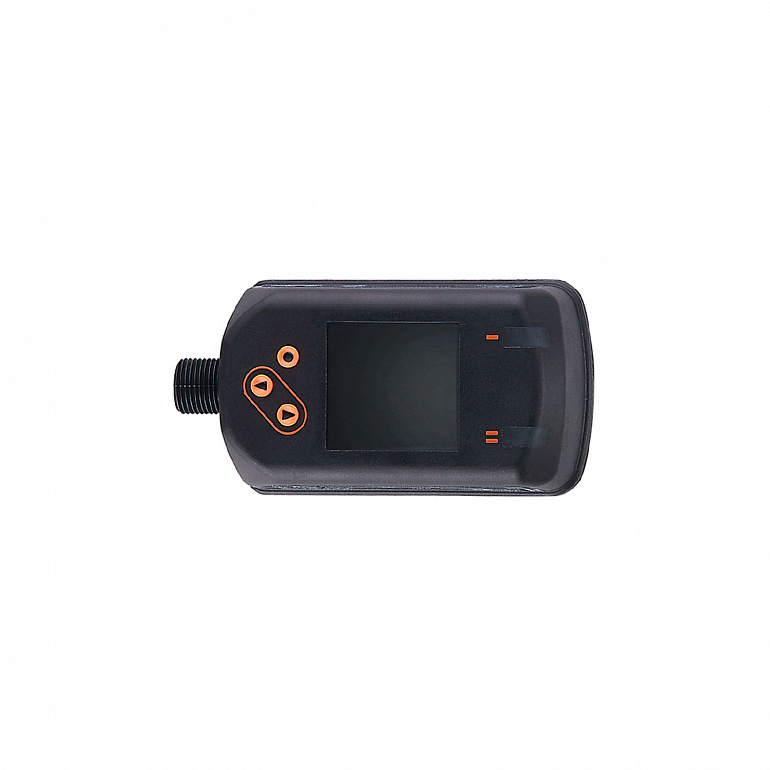

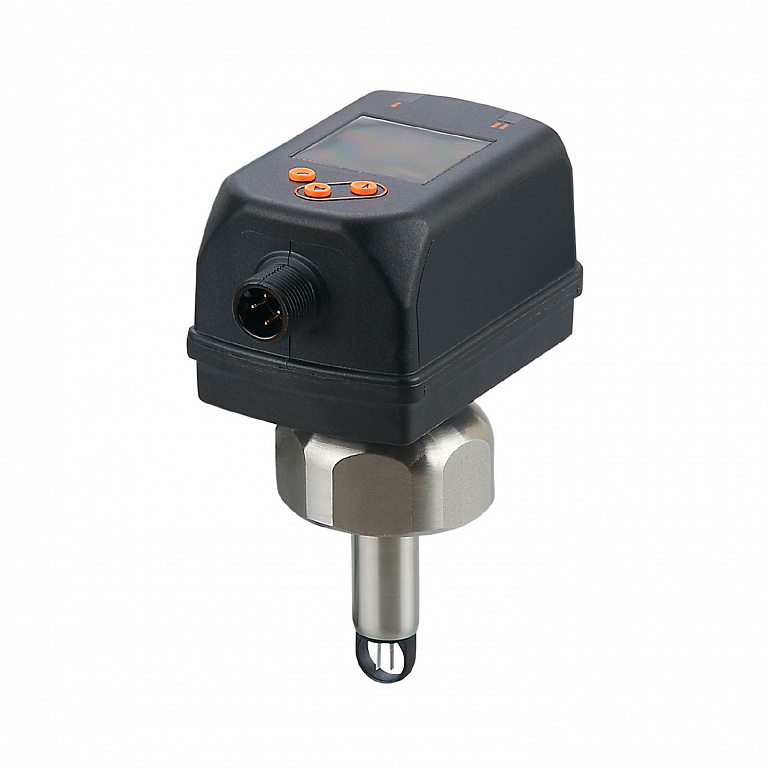

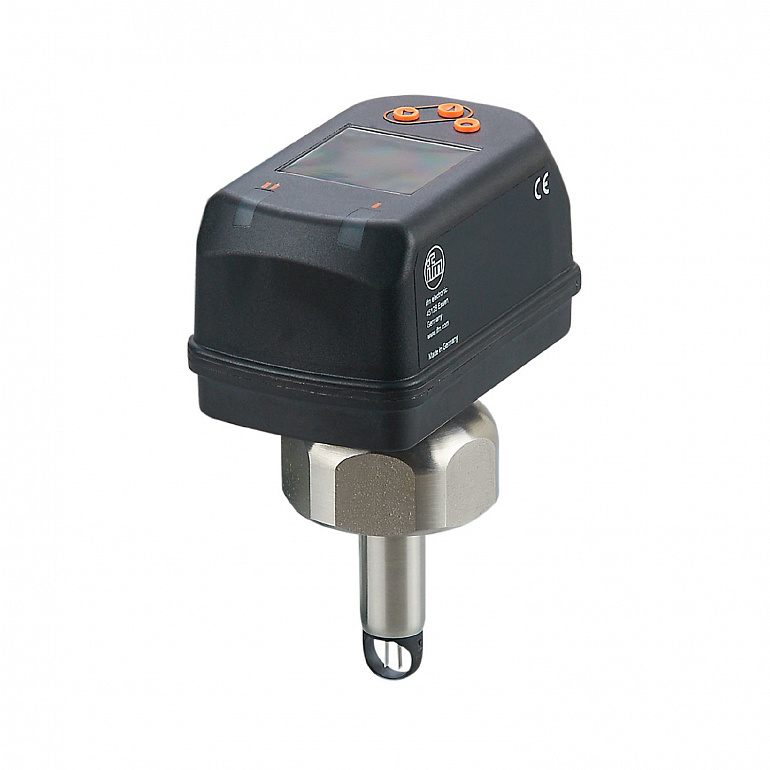

| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Measuring range |
| 0.6...143.9 m/s | 0.3...26260 m³/h | 0.005...437.6 m³/min |
|
| Process connection |
threaded connection G 1 Internal thread |
| Application |
for industrial applications |
| Installation |
Adjustable to inside pipe diameters; ( 14...254 mm) |
| Media |
compressed air |
| Medium temperature |
-10...60 |
| Min. bursting pressure |
|
| Pressure rating |
|
| MAWP (for applications according to CRN) |
10 |
| Operating voltage |
18...30 DC; (to SELV/PELV) |
| Current consumption |
< 80 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
1 |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Inputs |
counter reset |
| Output signal |
switching signal; analog signal; pulse signal; IO-Link; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
150; (per output) |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (scalable) |
| Max. load |
500 |
| Pulse output |
consumed quantity meter |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring range |
| 0.6...143.9 m/s | 0.3...26260 m³/h | 0.005...437.6 m³/min |
|
| Display range |
| 0...172.7 m/s | 0...31520 m³/h | 0...525.2 m³/min |
|
| Resolution |
| 0.1 m/s | 0.05 m³/h | 0.01 m³/min |
|
| Set point SP |
| 1.4...143.9 m/s | 0.8...26260 m³/h | 0.013...437.6 m³/min |
|
| Reset point rP |
| 0.7...143.2 m/s | 0.4...26140 m³/h | 0.007...435.6 m³/min |
|
| Analog start point ASP |
| 0...115.1 m/s | 0...21000 m³/h | 0...350 m³/min |
|
| Analog end point AEP |
| 28.8...143.9 m/s | 422...26260 m³/h | 7.04...437.6 m³/min |
|
| Low flow cut-off LFC |
| 0.2...1.4 m/s | 0.1...260 m³/h | 0.002...4.4 m³/min |
|
| In steps of |
| 0.1 m/s | 0.01 m³/h | 0.001 m³/min |
|
| Response time |
0.05 |
| Measuring range |
| 0...1000000000 m³ | 0...35314666721 scf |
|
| Display range |
| 0...1000000000 m³ | 0...35314666721 scf |
|
| Set point SP |
| 0.01...100000000 m³ | 0.35...3531466672.1 scf |
|
| Pulse value |
| 0.01...100000000 m³ | 0.35...3531466672.1 scf |
|
| In steps of |
|
| Pulse length |
0.001...2 |
| Dynamic response T05 / T09 |
T09 = 0,5 |
| Temperature coefficient |
± 0,07 % MW |
| Accuracy (in the measuring range) |
± (6 % MW + 0,6 % MEW); (reference conditions: diA = 73 mm; inlet pipe length >= 3 m; outlet pipe length >= 0,5 m; reference temperature: 20...25 °C; standard volume flow: 50...850 Nm³/h) |
| Repeatability |
± 1,5 % MW |
| Response time |
0.1; (dAP = 0) |
| Damping process value dAP |
0...5 |
| Parameter setting options |
hysteresis / window; normally open / closed; current/pulse output; display can be rotated and switched off; Display unit; totalizer |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| Profiles |
| Common - I&D | Identification and Diagnosis | | Function | Measurement data, standard resolution |
|
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
8 |
| Process data binary |
2 |
| Min. process cycle time |
8 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 872 |
|
| Ambient temperature |
0...60 |
| Storage temperature |
-20...85 |
| Max. relative air humidity |
90 |
| Protection |
IP 65; IP 67 |
| EMC |
|
| CPA approval |
| model number | - | | accuracy class | - | | maximum allowable error | ± 7 % FS | | Q (min) | 0,3 m³/h | | Q (t) | - | | Q (max) | 26260 m³/h |
|
| Vibration resistance |
| DIN EN 68000-2-6 | 5 g (10...2000 Hz) |
|
| MTTF |
167 |
| UL approval |
| UL approval number | I013 | | File number UL | E174189 |
|
| Weight |
408.3 |
| Housing |
rectangular |
| Dimensions |
85.1 x 45.8 x 100.3 |
| Material |
PBT+PC-GF30; PPS GF40; stainless steel (1.4301 / 304); stainless steel (1.4305 / 303); stainless steel (1.4404 / 316L); FKM |
| Materials (wetted parts) |
stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); FKM; ceramics glass passivated; PPS GF40; Al2O3 (ceramics); acrylate |
| Process connection |
threaded connection G 1 Internal thread |
| Display |
| Color display 1,44", 128 x 128 pixels | | 2 x LED, yellow |
|
| Remarks |
| MW = Measured value | | MEW = Final value of the measuring range | | D = inside pipe diameter | | Measuring, display and setting ranges refer to standard volume flow according to DIN ISO 2533. | | For information about installation and operation please see the operating instructions. |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
