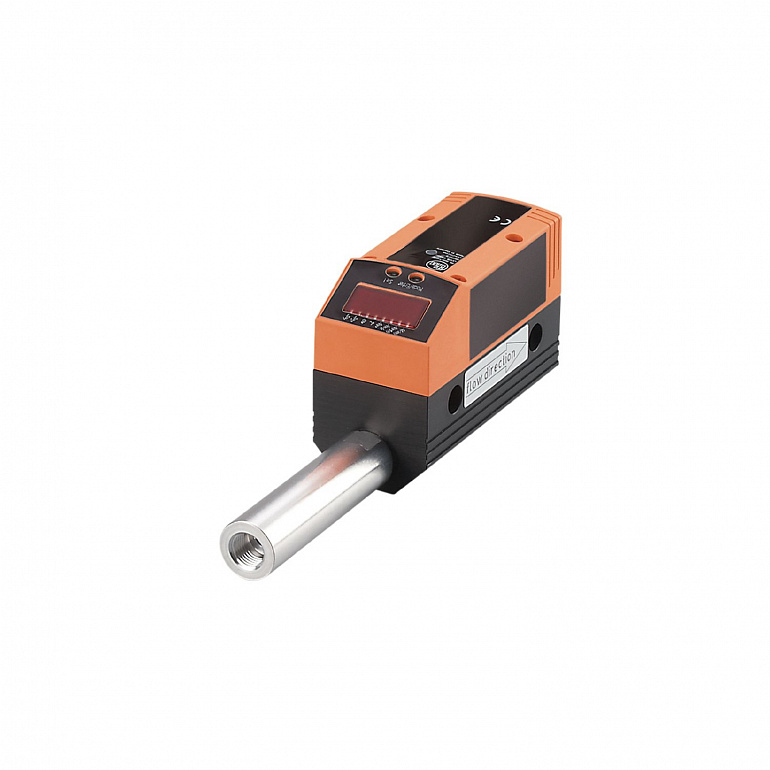

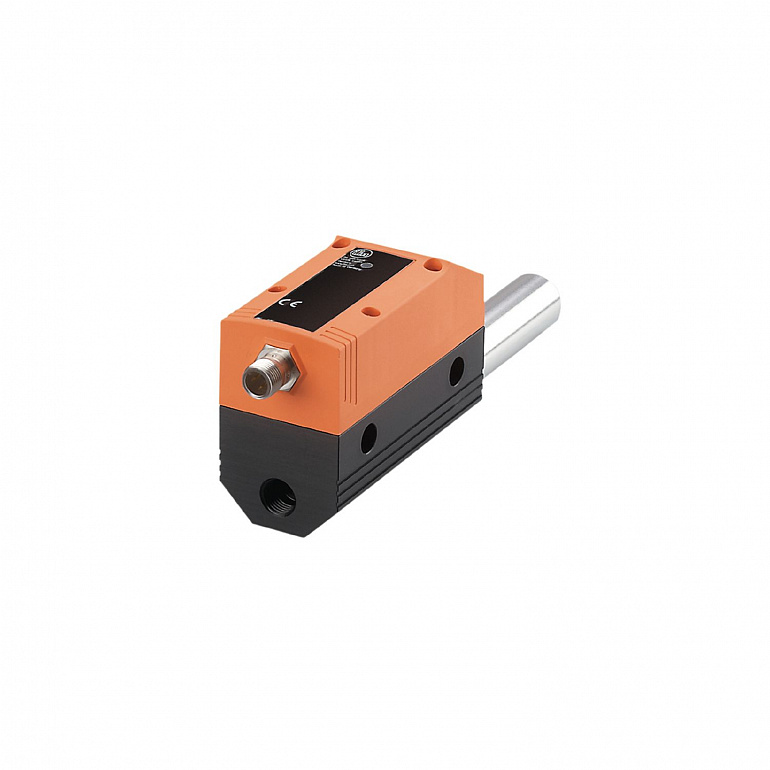

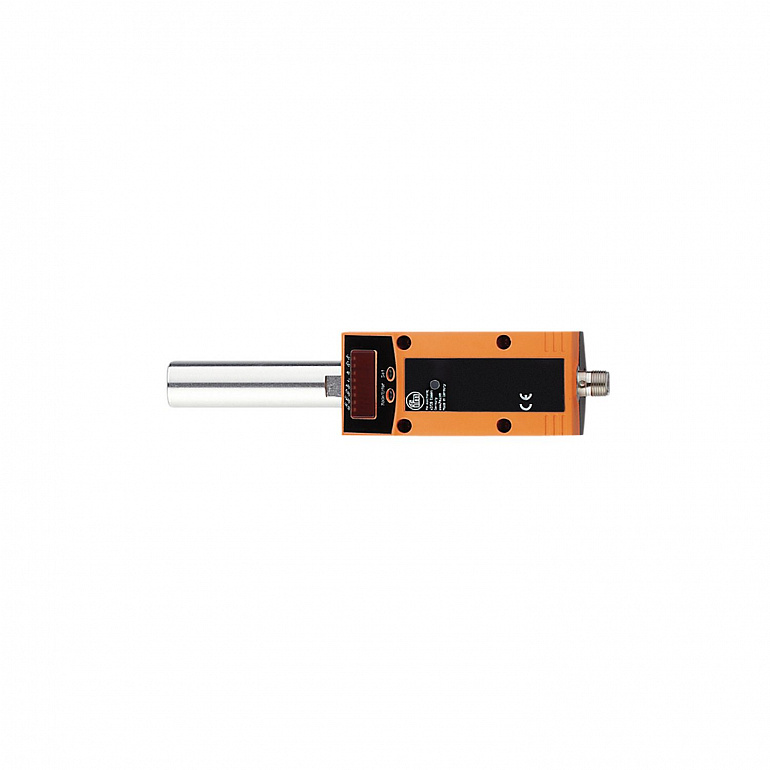

| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Measuring range |
| 1...250 l/min | 0.3...82.9 m/s | 0.04...15 m³/h |
|
| Process connection |
threaded connection G 1/4 Internal thread DN8 |
| Application |
for industrial applications |
| Media |
compressed air |
| Note on media |
| air quality ISO 8573-1 | | class 141 | | class 344 |
|
| Medium temperature |
0...60 |
| Pressure rating |
|
| Operating voltage |
18...30 DC; (to SELV/PELV) |
| Current consumption |
< 110 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
1 |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Total number of outputs |
2 |
| Output signal |
switching signal; analog signal; pulse signal; IO-Link; (configurable) |
| Electrical design |
PNP |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
250; (per output) |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (scalable) |
| Max. load |
500 |
| Pulse output |
consumed quantity meter |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring range |
| 1...250 l/min | 0.3...82.9 m/s | 0.04...15 m³/h |
|
| Display range |
| 0...300 l/min | 0...99.5 m/s | 0...18 m³/h |
|
| Set point SP |
| 2...250 l/min | 0.7...82.9 m/s | 0.12...15 m³/h |
|
| Reset point rP |
| 1...249 l/min | 0.3...82.5 m/s | 0.04...14.92 m³/h |
|
| Analog start point ASP |
| 0...187.5 l/min | 0...62.2 m/s | 0...11.26 m³/h |
|
| Analog end point AEP |
| 62.5...250 l/min | 20.7...82.9 m/s | 3.74...15 m³/h |
|
| In steps of |
| 0.5 l/min | 0.1 m/s | 0.02 m³/h |
|
| Pulse value |
0.001...1000000 m³ |
| In steps of |
0.001 m³ |
| Pulse length |
0,1...2 |
| Accuracy |
± 2; (medium flow in the limit area of the flow measurement range) |
| Response time |
0.1; (dAP = 0) |
| Damping process value dAP in steps |
0 - 0,2 - 0,4 - 0,6 - 0,8 - 1 |
| Parameter setting options |
Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / closed; current/pulse output; display can be rotated and switched off; Display unit; totalizer |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
3 |
| Process data binary |
2 |
| Min. process cycle time |
4.1 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 260 |
|
| Ambient temperature |
0...60 |
| Storage temperature |
-20...85 |
| Max. relative air humidity |
90 |
| Protection |
IP 65 |
| EMC |
| DIN EN 61000-6-2 | | | DIN EN 61000-6-3 | |
|
| CPA approval |
| model number | 002TG | | accuracy class | - | | maximum allowable error | ± 4 % FS | | Q (min) | 0,04 m³/h | | Q (t) | - | | Q (max) | 15 m³/h |
|
| Vibration resistance |
| DIN EN 68000-2-6 | 5 g (55...2000 Hz) |
|
| MTTF |
227 |
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight |
974 |
| Housing |
rectangular |
| Dimensions |
182.3 x 45 x 74.5 |
| Material |
PBT-GF20; NBR; PC; stainless steel (1.4301 / 304); PTFE; brass coated; FKM; aluminum powder-coated |
| Materials (wetted parts) |
stainless steel (1.4301 / 304); FKM; ceramics glass passivated; PEEK GF30; polyester; aluminum |
| Process connection |
threaded connection G 1/4 Internal thread DN8 |
| Display |
| Display unit | 5 x LED, green (Nl/min, Nm³/h, Nm/s, Nm³, °C) | | Function display | 1 x LED, green | | Switching status | 2 x LED, yellow | | Measured values | alphanumeric display, 4-digit | | Programming | alphanumeric display, 4-digit |
|
| Remarks |
| MW = Measured value | | MEW = Final value of the measuring range | | Measuring, display and setting ranges refer to standard volume flow according to DIN ISO 2533. | | For information about installation and operation please see the operating instructions. |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
