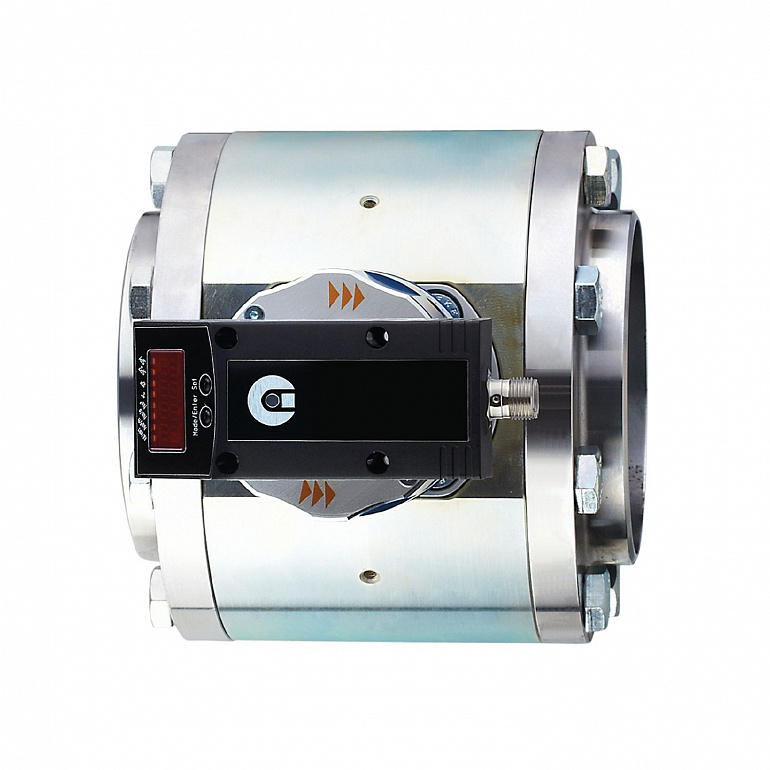

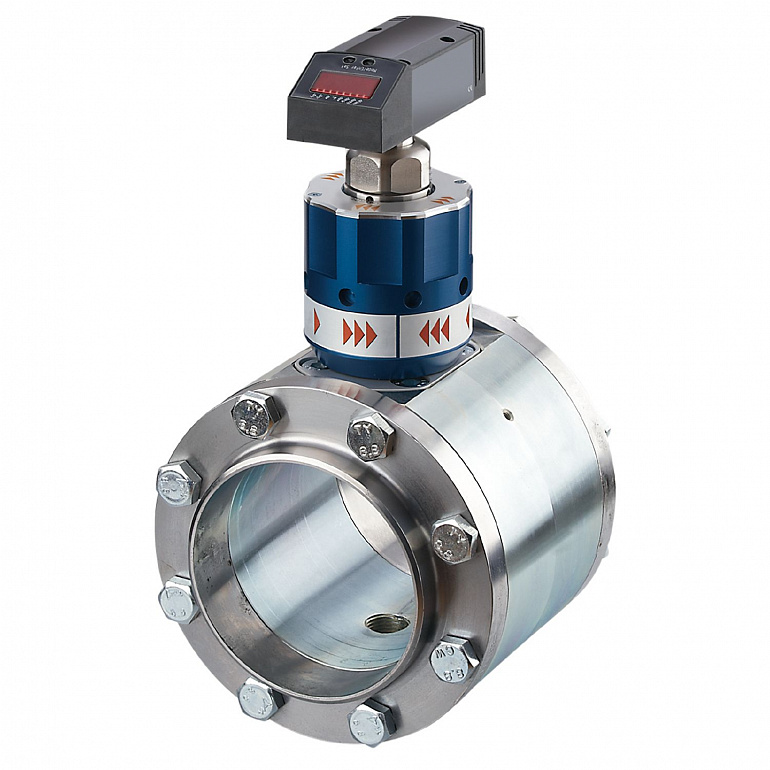

| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Measuring range |
58...17500 |
| Process connection |
flange DN200 according to:DIN EN 10220 |
| Application |
Totalizer function |
| Media |
compressed air |
| Note on media |
| air quality ISO 8573-1 | | class 141 | | class 344 |
|
| Medium temperature |
0...60 |
| Pressure rating |
|
| Operating voltage |
19...30 DC |
| Current consumption |
< 100 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
0.5 |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Total number of outputs |
2 |
| Output signal |
switching signal; analog signal; pulse signal; (configurable) |
| Electrical design |
PNP |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
250; (per output) |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (scalable) |
| Max. load |
500 |
| Pulse output |
consumed quantity meter |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring range |
58...17500 |
| Display range |
0...21000 |
| Pulse value |
10 Nm³ |
| Pulse length |
0,1 |
| Response time |
0.1; (dAP = 0) |
| Ambient temperature |
0...60 |
| Storage temperature |
-20...85 |
| Max. relative air humidity |
90 |
| Protection |
IP 65 |
| EMC |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 10 V |
|
| Vibration resistance |
| DIN IEC 68-2-6 | 5 g (55...2000 Hz) |
|
| MTTF |
214 |
| Weight |
41441 |
| Housing |
rectangular |
| Dimensions |
180 x 290 x 410.2 |
| Material |
PBT-GF20; PC; PC; stainless steel (1.4301 / 304); FKM; Pipe section: stainless steel (1.4301 / 304) |
| Materials (wetted parts) |
stainless steel (1.4401 / 316); stainless steel (1.4301 / 304); ceramics glass passivated; PEEK; polyester; FKM; aluminum anodized; stainless steel (1.4301 / 304) |
| Process connection |
flange DN200 according to:DIN EN 10220 |
| Remarks |
| MW = Measured value | | MEW = Final value of the measuring range | | Measuring, display and setting ranges refer to standard volume flow according to DIN ISO 2533. | | For information about installation and operation please see the operating instructions. |
|
| Pack quantity |
1 pcs. |

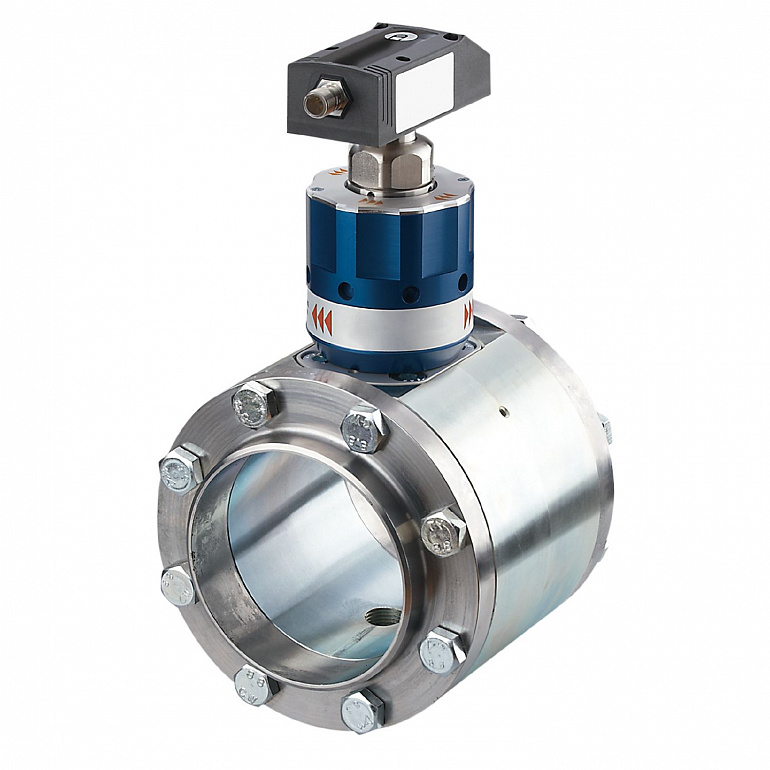

| Connection |
Connector: 1 x M12; coding: A |
