| Application |
for industrial indoor applications |
| Media |
compressed air; nitrogen (N2) |
| Operating voltage |
7.4 DC; (rechargeable lithium-ion battery; permanent operation: approx. 6 h maximum charging time 4 h) |
| Type of light |
Infrared light |
| Wave length range |
645000...660000 |
| Frequency range |
40000; (± 2000) |
| Measuring principle |
30 MEMS microphones |
| Measuring range |
> 0.1 |
| Note on measuring range |
|
| Accuracy |
|
| Parameter setting options |
via PC using leak report software |
| Communication interface |
USB; WLAN |
| Ambient temperature |
-5...50 |
| Storage temperature |
-20...60 |
| Max. relative air humidity |
95 |
| Max. height above sea level |
4000 |
| Protection |
IP 20 |
| Degree of soiling |
2 |
| EMC |
| DIN EN IEC 61326-1 : 2022-11 | | | DIN EN 55011 : 2022-05 | |
|
| Laser protection class |
2 |
| Notes on laser protection |
| Caution - Laser light | | Power: <1 mW | | Wave length: 645...660 nm | | Do not stare into beam. | | Avoid exposure to the laser light. | | laser class: 2 |
|
| Weight |
4499.5 |
| Housing |
rectangular |
| Type of mounting |
portable hand-held device |
| Dimensions |
272 x 96.1 x 332 |

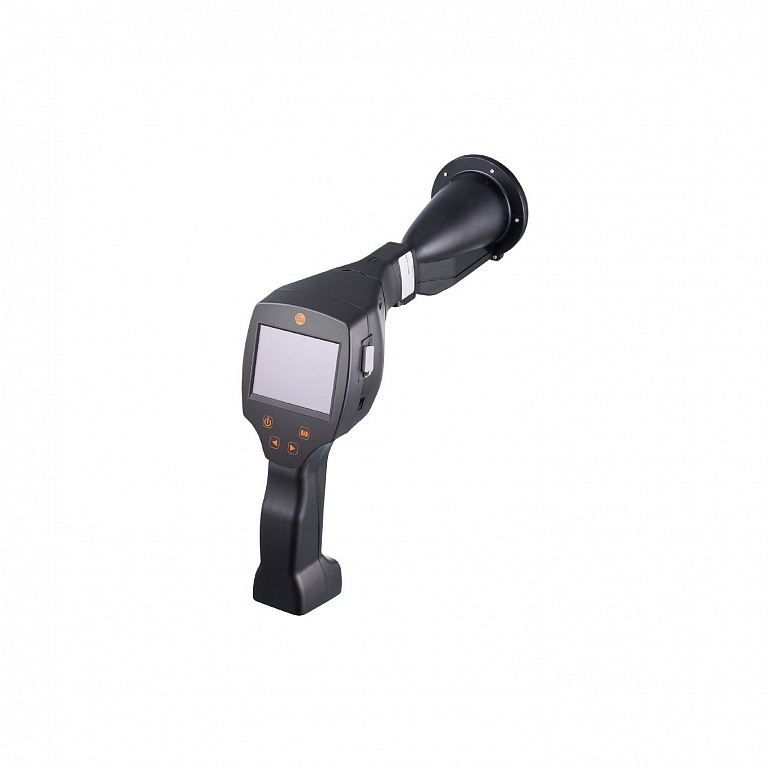

| Display |
| 3.5" - TFT touch panel transmissive | |
|
| Language |
English; German; Spanish; Italian; Danish; Polish; French; Portuguese; Romanian; Czech |
| Operating elements |
|
| Memory size |
100000000 data records |

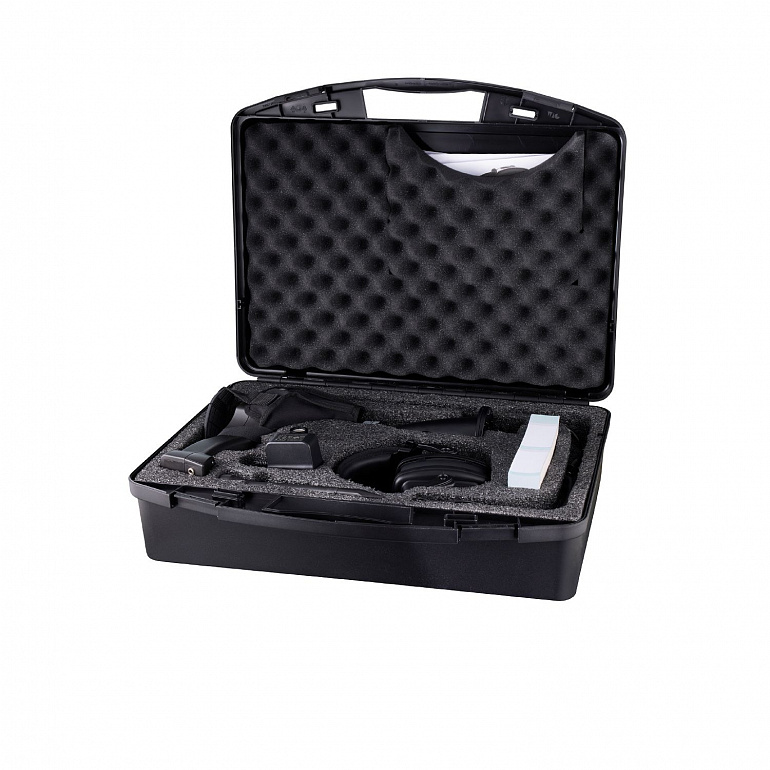

| Items supplied |
| external battery charger | | Leak Tag Block | | USB stick | | Leak report Software | | headphones, jack plug 3,5 mm |
|
| Remarks |
| brightness sensor activates LEDs in dark environments | | auto level: automatically adjusts the sensitivity to the environment and suppresses background noise | | function for estimating leakages (l/min or cfm) and the resulting costs per year | | integrated laser distance measurement | | the leakage can be heard from a greater distance; the user must approach the leakage to locate it accurately |
|
| Pack quantity |
1 pcs. |
