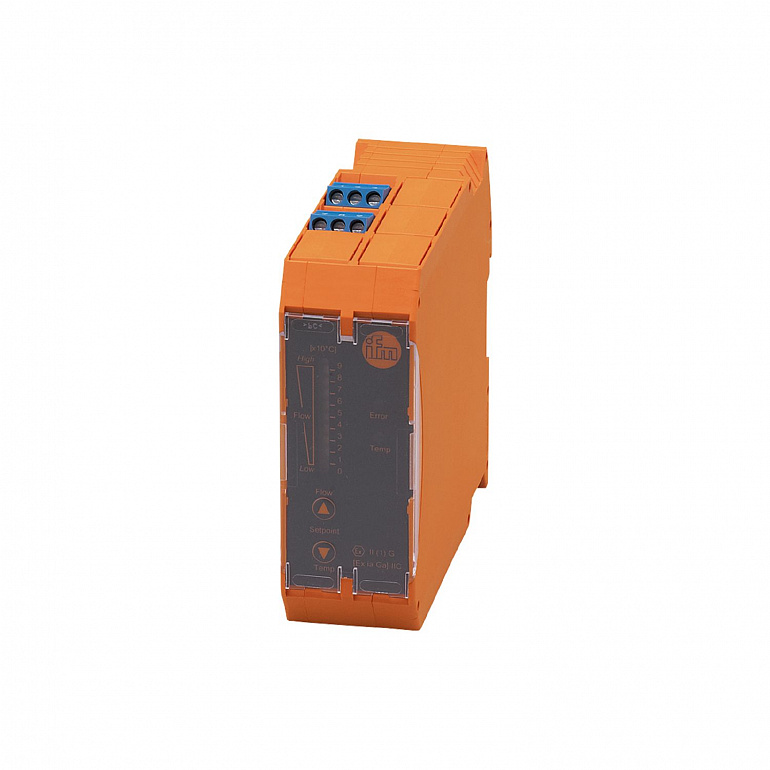

| Design |
housing for DIN rail mounting |
| Application |
Flow monitoring; Temperature monitoring; Wire break monitoring |
| Operating voltage tolerance |
-15...15 |
| Operating voltage |
24 DC |
| Current consumption |
100 |
| Reverse polarity protection |
no |
| Power-on delay time |
10 |
| Number of channels |
1 |
| Performance in case of a fault |
Relay de-energized in case of the following faults: wire break, reverse polarity or short circuit of the sensor cable, undervoltage, internal fault |
| Electrical design |
Relay |
| Contact rating |
4 A (250 V AC cos phi > 0,7) ; 0,2 A (250 V DC); 4 A (24 V DC) |
| Switching function flow monitoring |
relay energized when flow is present |
| Switching function temperature monitoring |
relay de-energized when temperature is exceeded |
| Short-circuit proof |
no |
| Overload protection |
no |
| Adjustment of the switch point |
Programming buttons |
| Ambient temperature |
-20...60 |
| Storage temperature |
-25...80 |
| Protection |
IP 20 |
| Protection rating terminals |
IP 20 |
| Approval |
CSANe 21ATEX2238; IECEx CSA 21.0044 |
| ATEX marking |
II (1) G [Ex ia Ga] IIC |
|
II (1) G [Ex ia Ga] IIB |
| MTTF |
124 |
| Weight |
368 |
| Housing |
rectangular |
| Type of mounting |
Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
104.5 x 32.5 x 113.6 |
| Material |
PA |
| Display |
| fault | LED, red | | Function | LED, bar graph | | Switching status | LED, yellow |
|
| Connection |
terminals: 15 x ...2.5 mm² |
| Remarks |
| Caution The control monitor must be mounted outside the hazardous area. | | Recommendation Check the safe functioning of the unit after a short circuit. |
|
| Pack quantity |
1 pcs. |
