| System |
gold-plated contacts |
| Application |
food and beverage industry |
| Operating voltage |
18...32 DC |
| Current consumption |
250; (24V) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 5 |
| Total number of inputs and outputs |
2 |
| Inputs |
| OUT2 | external totalizer reset |
|
| Total number of outputs |
2 |
| Output signal |
| OUT1 | pulse signal; totalizer switching signal; diagnostic signal; IO-Link | | OUT2 | analog signal; pulse signal; totalizer switching signal; diagnostic signal |
|
| Electrical design |
PNP/NPN |
| Pulse output |
flow rate meter |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (skalierbar) |
| Max. load |
500 |
| Resolution of analog output |
0.38 µA |
| Number of digital outputs |
2 |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
0...10000 |
| Diagnostic functions |
direction of flow detection; liquid detection |
| Communication interface |
IO-Link |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1.3 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Common - I&D | Identification and Diagnosis | | Smart Sensor - SSP 4.3.4 | Measuring and Switching Sensor, floating point, 4 channel |
|
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
6 |
| Process data binary |
8 |
| Min. process cycle time |
1.9 |
| IO-Link process data (cyclical) |
| Function | bit length |
|---|
| totalizer | 32 | | flow | 32 | | temperature | 32 | | conductivity | 32 | | status | 4 | | binary switching information | 8 |
|
| IO-Link functions (acyclical) |
direction of flow detection; totalizer; memory; operating hours counter; internal temperature; simulation function |
| Ambient temperature |
|
| Storage temperature |
|
| Protection |
IP 67; IP 69 |
| EMC |
|
| Shock resistance |
| DIN IEC 68-2-27 | 20 g (18ms) |
|
| Vibration resistance |
| DIN IEC 68-2-6 | 5 g (10...2000Hz) |
|
| Weight |
922 |
| Housing |
rectangular |
| Dimensions |
92.6 x 130.6 x 59 |
| Material |
electronics: stainless steel (1.4404 / 316L); Display: polysulfone; Display-sealing: FKM; LED ring: PP |
| Display |

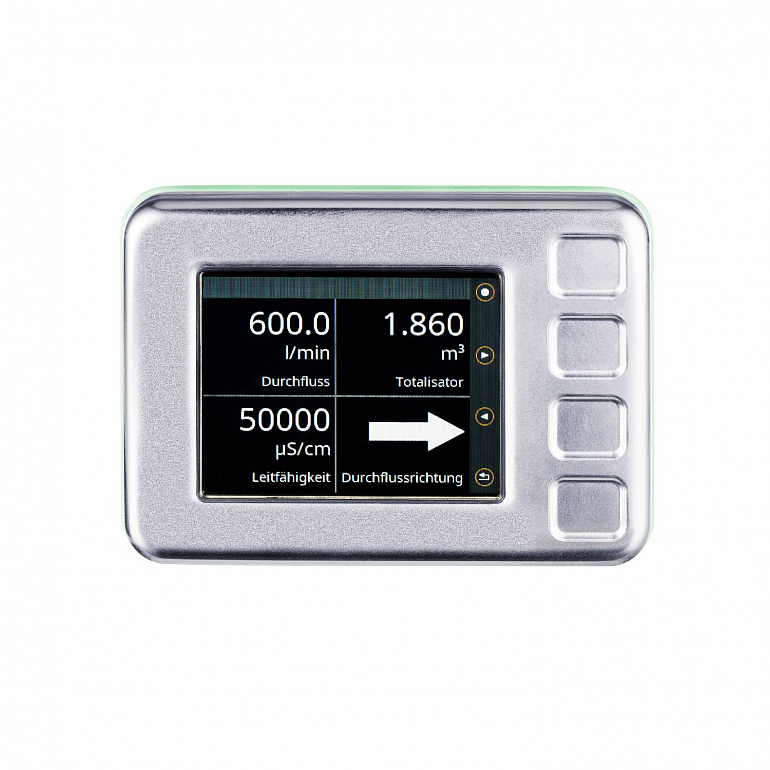

| process value | full graphics TFT display, multi-color 3,5" 320 x 240 Pixel | | display layouts: 4 | | display rotation: 4 x 90° | | operating status | LED ring, three-color |
|
| Language |
German; English; Spanish; French; Italian; Japanese; Korean; Portuguese; Chinese |
| Operating elements |
|
| Items supplied |

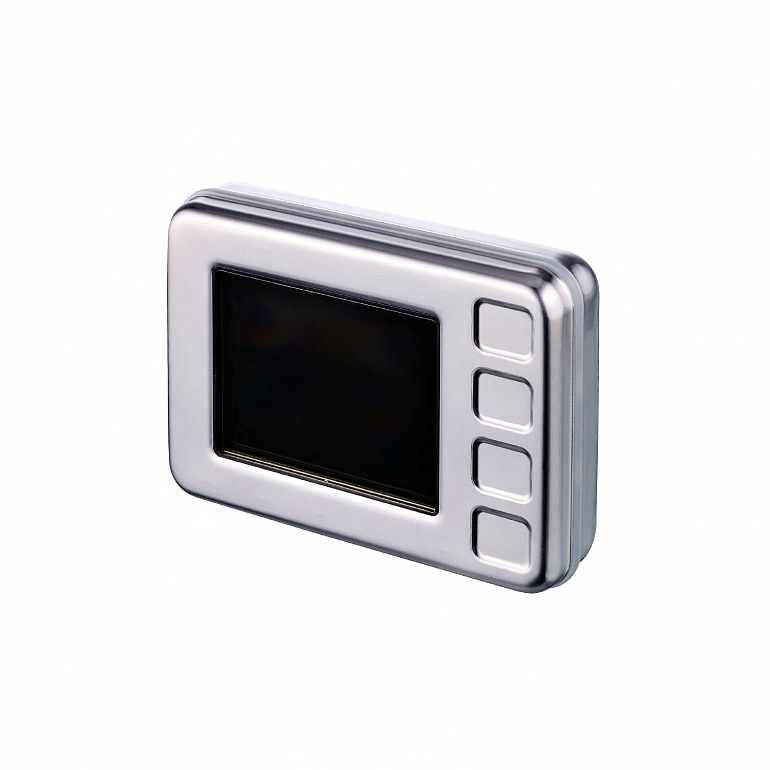

| replacement electronics: 1 x (92,6 x 130,6 x 59 mm), for SMFx2x | | Hexagon nuts: 4 x M5 |
|
| Pack quantity |
1 pcs. |
| Connection |

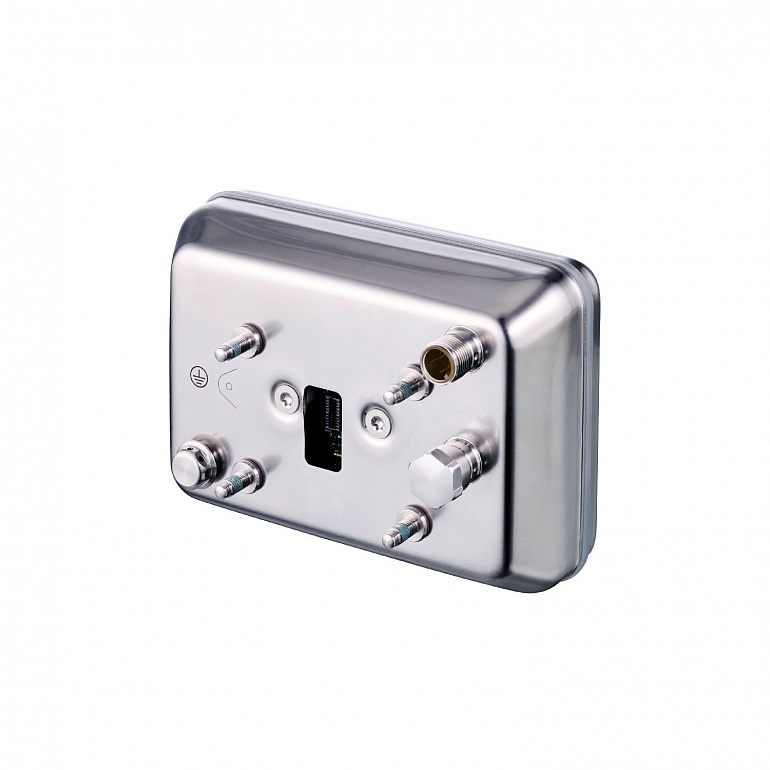

Connector: 1 x M12; coding: A; Contacts: gold-plated |
