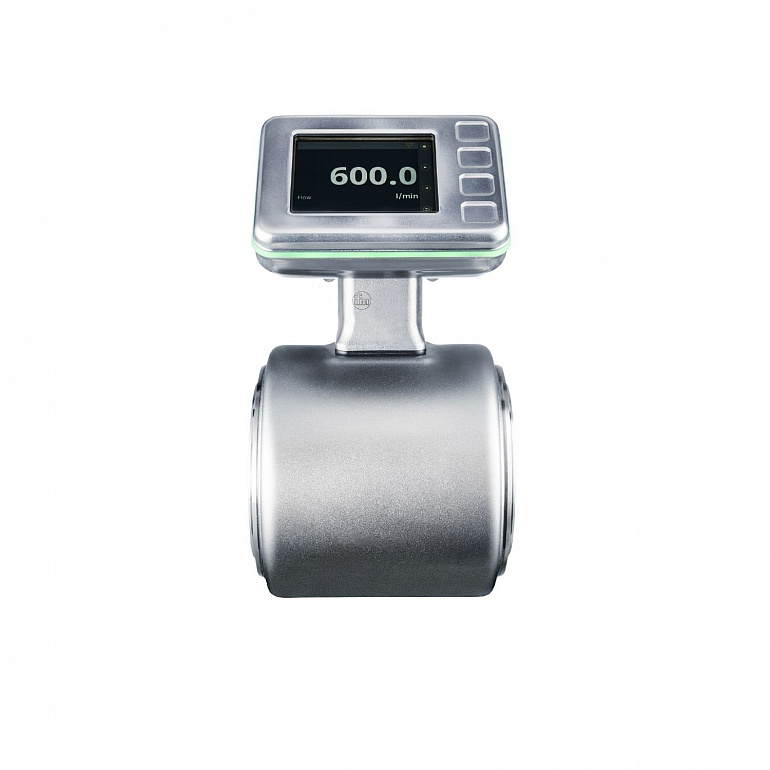

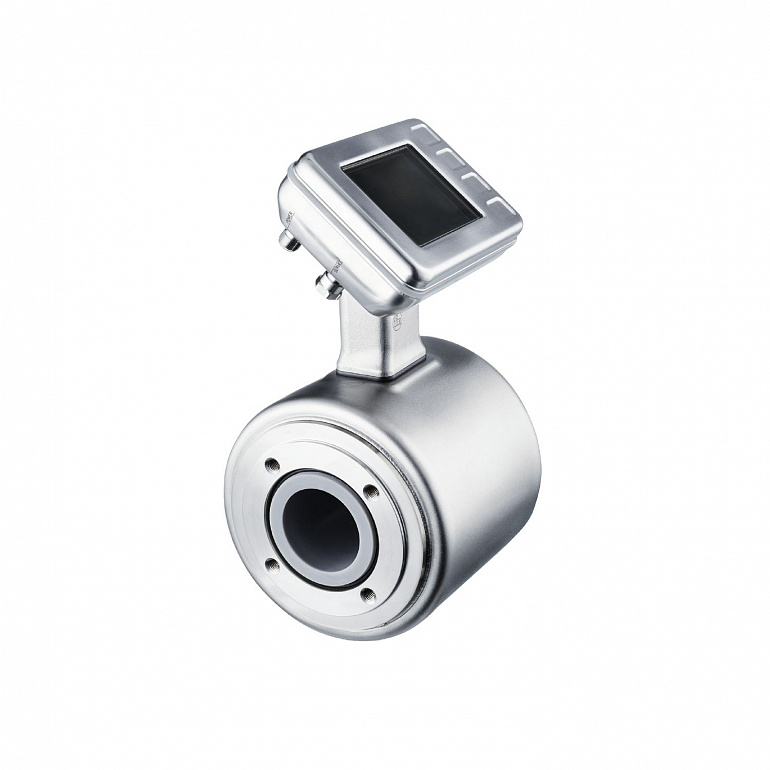

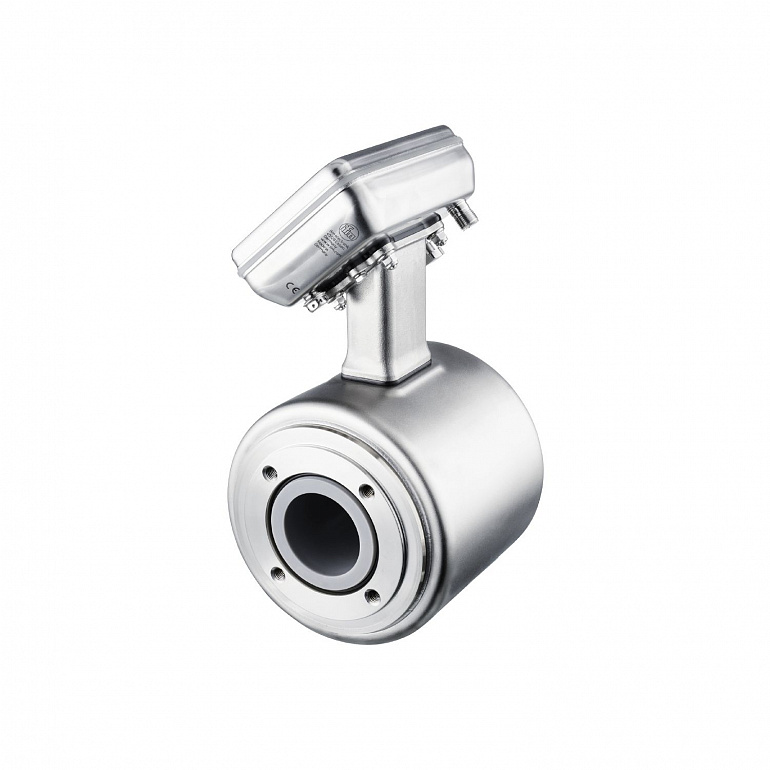

| Measuring range |
| 10...1200 l/min | 600...72000 l/h | 0.09...10 m/s | 0.6...72 m³/h |
|
| Nominal diameter |
DN50 (2“) |
| Process connection |
ifm-specific device flange |
| System |
gold-plated contacts |
| Application |
food and beverage industry |
| Media |
Conductive liquids; water; water-based media |
| Note on media |
| food products such as beer, milk, fruit juices, soft drinks, ketchup, yogurt, yogurt toppings, ice cream | | conductivity: ≥ 5 µS/cm |
|
| Medium temperature |
-20...150 |
| Min. bursting pressure |
|
| Pressure rating |
|
| Operating voltage |
18...32 DC |
| Current consumption |
250; (24V) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 5 |
| Measuring principle |
magnetic-inductive |
| Total number of inputs and outputs |
2 |
| Inputs |
| OUT2 | external totalizer reset |
|
| Total number of outputs |
2 |
| Output signal |
| OUT1 | pulse signal; totalizer switching signal; diagnostic signal; IO-Link | | OUT2 | analog signal; pulse signal; totalizer switching signal; diagnostic signal |
|
| Electrical design |
PNP/NPN |
| Pulse output |
flow rate meter |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (skalierbar) |
| Max. load |
500 |
| Resolution of analog output |
0.38 µA |
| Number of digital outputs |
2 |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
0...10000 |
| Measuring range |
| 10...1200 l/min | 600...72000 l/h | 0.09...10 m/s | 0.6...72 m³/h |
|
| Display range |
| -1440...1440 l/min | -86400...86400 l/h | -12...12 m/s | -86.4...86.4 m³/h |
|
| Resolution |
| 0.1 l/min | 50 l/h | 0.01 m/s | 0.05 m³/h |
|
| Note on factory setting |
|
| Analog start point ASP |
| -1200...960 l/min | -72000...57600 l/h | -10.19...8.19 m/s | -72...57.6 m³/h |
|
| Analog end point AEP |
| -960...1200 l/min | 57600...72000 l/h | -8.19...10.19 m/s | -57.6...72 m³/h |
|
| Low flow cut-off LFC |
| 0...960 l/min | 0...57600 l/h | 0...8.19 m/s | 0...57.6 m³/h |
|
| Pulse length |
0.00005...2 |
| Pulse value |
0.002...99990000 I |
| Response time |
< 3; (Flow velocity: ≥ 0,5m/s) |
| Response time |
< 2 |
| Response time |
< 0.3 |
| Damping process value dAP |
0...5 |
| Diagnostic functions |
direction of flow detection; liquid detection |
| Communication interface |
IO-Link |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1.3 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 4.3.4 | Measuring and Switching Sensor, floating point, 4 channel | | BLOB | Binary Large Object transfer | | Common - I&D | Identification and Diagnosis | | Extension | Sensor Control Wide | | Extension | Quantity detection, switches when value exceeds the setpoint | | Function | Locator | | Function | ProductURI |
|
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
6 |
| Process data binary |
8 |
| Min. process cycle time |
1.9 |
| IO-Link process data (cyclical) |
| Function | bit length |
|---|
| totalizer | 32 | | flow | 32 | | temperature | 32 | | conductivity | 32 | | status | 4 | | binary switching information | 8 |
|
| IO-Link functions (acyclical) |
direction of flow detection; totalizer; memory; operating hours counter; internal temperature; simulation function |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1639 |
|
| Ambient temperature |
-20...65 |
| Storage temperature |
-20...80 |
| Protection |
IP 67; IP 69; (to DIN EN 60529) |
| EMC |
|
| CPA approval |
| model number | SMF | | accuracy class | 0,5 |
|
| Shock resistance |
| DIN IEC 68-2-27 | 20 g (18ms) |
|
| Vibration resistance |
| DIN IEC 68-2-6 | 5 g (10...2000Hz) |
|
| MTTF |
81 |
| UL approval |
|
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight |
5798.2 |
| Inlet pipe length |
5 x DN |
| Outlet pipe length |
2 x DN |
| Material |
housing: stainless steel (1.4404 / 316L); flange: stainless steel (1.4301 / 304); electronics fixture: stainless steel (1.4301 / 304); electronics: stainless steel (1.4404 / 316L); Display: polysulfone; Display-sealing: FKM; LED ring: PP |
| Materials (wetted parts) |
Pipe section: PFA; electrodes: stainless steel (1.4435 / 316L) |
| Nominal diameter |
DN50 (2“) |
| Process connection |
ifm-specific device flange |
| Surface characteristics Ra/Rz of the wetted parts |
Ra < 0.4 μm |
| Display |
| process value | full graphics TFT display, multi-color 3,5" 320 x 240 Pixel | | display layouts: 4 | | display rotation: 4 x 90° | | operating status | LED ring, three-color |
|
| Display unit |
l/min; l/h; hl/min; hl/h; m³/min; m³/h; m/s; °C; μS/cm; S/m; ms/cm |
| Factory setting |
m³/h; °C; μS/cm |
| Language |
German; English; Spanish; French; Italian; Japanese; Korean; Portuguese; Chinese |
| Operating elements |
|
| Remarks |
| MW = Measured value | | MEW = Final value of the measuring range | | pulse and totalizer signal are only available for one of the two outputs | | reference conditions (1/2): water (free of gas bubbles), 15...35 °C, process connection: DIN32676 series A, pipe standard suitable for process connection | | reference conditions (2/2): inlet pipe length 10xDN, outlet pipe length 5xDN, device settling time: 30 minutes, device orientation: horizontal, display orientation: up |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
