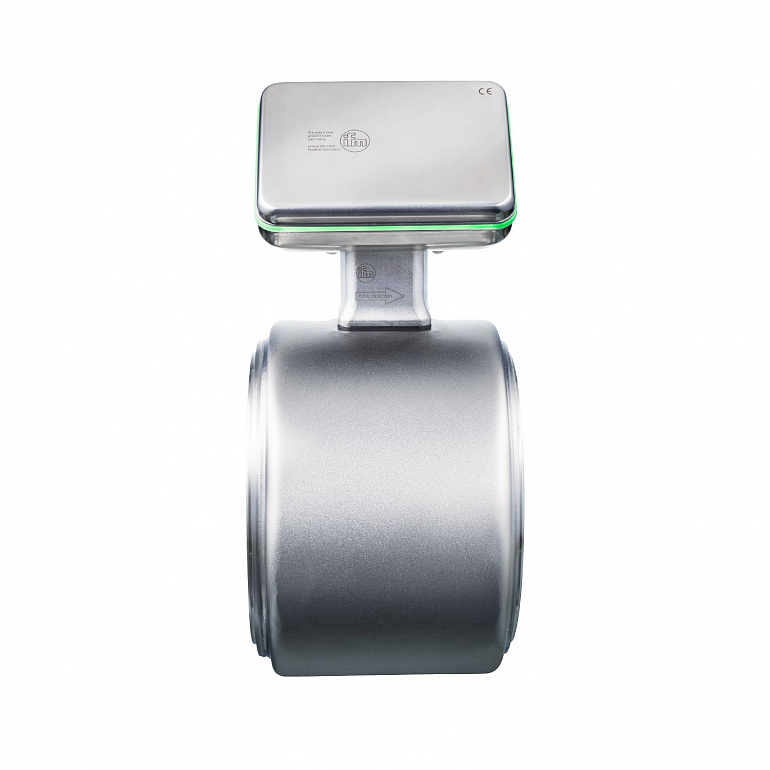

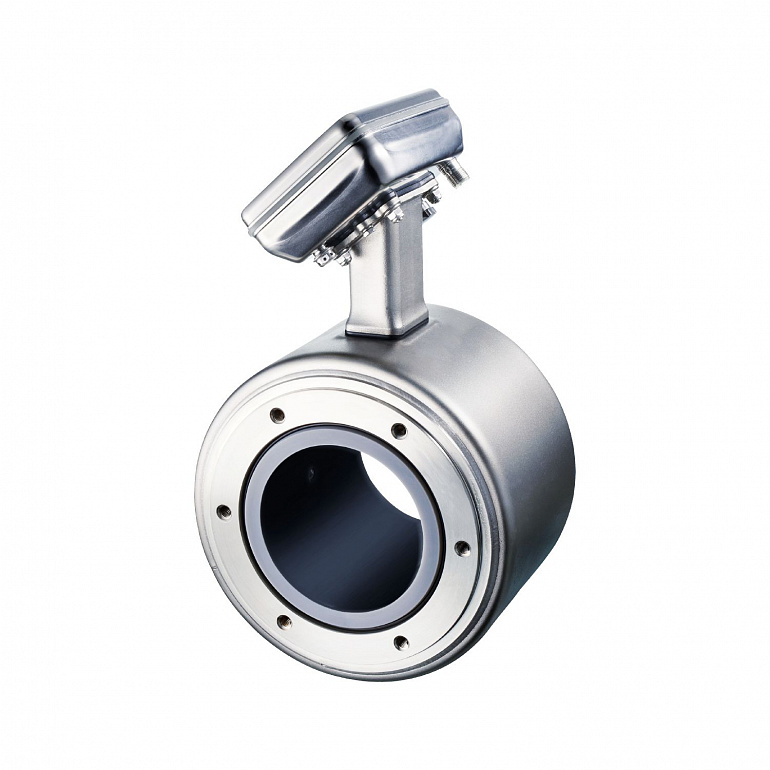

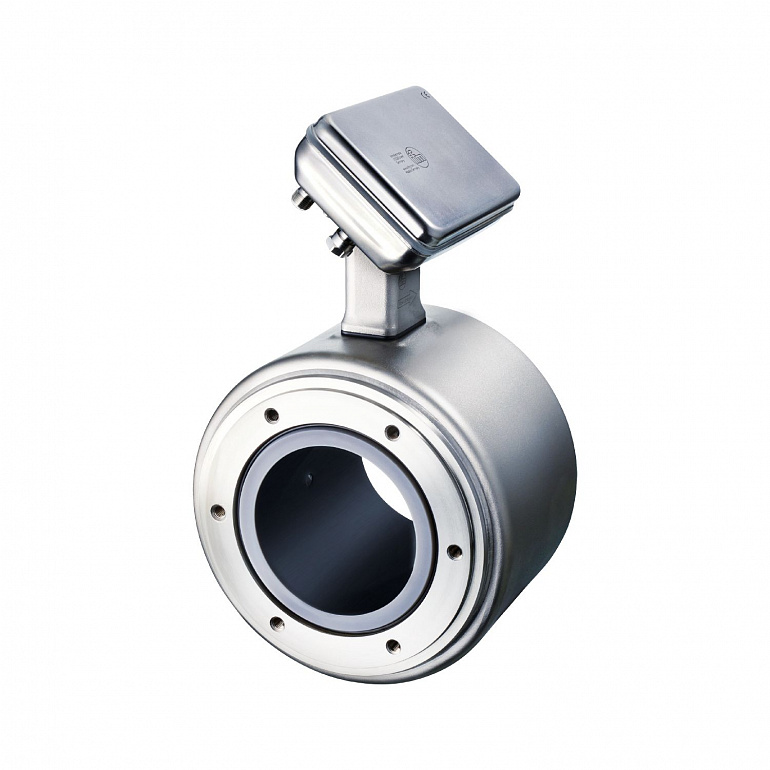

| Measuring range |
| 50...5000 l/min | 3...300 m³/h | 13.2...1321 gpm | 0.33...32.8 ft/s |
|
| Nominal diameter |
DN100 (4“) |
| Process connection |
ifm-specific device flange |
| System |
gold-plated contacts |
| Application |
food and beverage industry |
| Media |
Conductive liquids; water; water-based media |
| Note on media |
| food products such as beer, milk, fruit juices, soft drinks, ketchup, yogurt, yogurt toppings, ice cream | | conductivity: ≥ 5 µS/cm |
|
| Medium temperature |
-20...150 |
| Min. bursting pressure |
| 37.5 bar | 543.75 psi | 3.75 MPa |
|
| Pressure rating |
|
| Operating voltage |
18...32 DC |
| Current consumption |
250; (24V) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 5 |
| Measuring principle |
magnetic-inductive |
| Total number of inputs and outputs |
2 |
| Inputs |
| OUT2 | external totalizer reset |
|
| Total number of outputs |
2 |
| Output signal |
| OUT1 | pulse signal; totalizer switching signal; diagnostic signal; IO-Link | | OUT2 | analog signal; pulse signal; totalizer switching signal; diagnostic signal |
|
| Electrical design |
PNP/NPN |
| Pulse output |
flow rate meter |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (skalierbar) |
| Max. load |
500 |
| Resolution of analog output |
0.38 µA |
| Number of digital outputs |
2 |
| Max. voltage drop switching output DC |
2 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
0...10000 |
| Measuring range |
| 50...5000 l/min | 3...300 m³/h | 13.2...1321 gpm | 0.33...32.8 ft/s |
|
| Note on factory setting |
|
| Analog start point ASP |
| -5000...4000 l/min | -300...240 m³/h | -1321...1056.8 gpm | -32.8...26.24 ft/s |
|
| Analog end point AEP |
| -4000...5000 l/min | -240...300 m³/h | -1056.8...1321 gpm | -26.24...32.8 ft/s |
|
| Low flow cut-off LFC |
| 0...4000 l/min | 0...240 m³/h | 0...1056.8 gpm | 0...26.24 ft/s |
|
| Pulse length |
0.00005...2 |
| Pulse value |
0.001...99990000 I |
| Response time |
< 3; (Flow velocity: ≥ 0,5m/s) |
| Response time |
< 2 |
| Response time |
< 0.3 |
| Damping process value dAP |
0...5 |
| Diagnostic functions |
direction of flow detection; liquid detection |
| Communication interface |
IO-Link |
| Transmission type |
COM3 (230,4 kBaud) |
| IO-Link revision |
1.1.3 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 4.3.4 | Measuring and Switching Sensor, floating point, 4 channel | | BLOB | Binary Large Object transfer | | Common - I&D | Identification and Diagnosis | | Extension | Sensor Control Wide | | Extension | Quantity detection, switches when value exceeds the setpoint | | Function | Locator | | Function | ProductURI |
|
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
6 |
| Process data binary |
8 |
| Min. process cycle time |
1.9 |
| IO-Link process data (cyclical) |
| Function | bit length |
|---|
| totalizer | 32 | | flow | 32 | | temperature | 32 | | conductivity | 32 | | status | 4 | | binary switching information | 8 |
|
| IO-Link functions (acyclical) |
direction of flow detection; totalizer; memory; operating hours counter; internal temperature; simulation function |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1803 |
|
| Ambient temperature |
|
| Storage temperature |
|
| Protection |
IP 67; IP 69; (to DIN EN 60529) |
| EMC |
|
| CPA approval |
| model number | SMF | | accuracy class | 0,5 |
|
| Shock resistance |
| DIN IEC 68-2-27 | 20 g (18ms) |
|
| Vibration resistance |
| DIN IEC 68-2-6 | 5 g (10...2000Hz) |
|
| MTTF |
82 |
| UL approval |
|
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight |
8818.2 |
| Inlet pipe length |
5 x DN |
| Outlet pipe length |
2 x DN |
| Material |
housing: stainless steel (1.4404 / 316L); flange: stainless steel (1.4301 / 304); electronics fixture: stainless steel (1.4301 / 304); electronics: stainless steel (1.4404 / 316L); LED ring: PP |
| Materials (wetted parts) |
Pipe section: PFA; electrodes: stainless steel (1.4435 / 316L) |
| Nominal diameter |
DN100 (4“) |
| Process connection |
ifm-specific device flange |
| Surface characteristics Ra/Rz of the wetted parts |
Ra < 0.4 μm |
| Display |
| operating status | LED ring, three-color |
|
| Factory setting |
m³/h; °C; μS/cm |
| Remarks |
| MW = Measured value | | MEW = Final value of the measuring range | | pulse and totalizer signal are only available for one of the two outputs | | reference conditions (1/2): water (free of gas bubbles), 15...35 °C, process connection: DIN32676 series A, pipe standard suitable for process connection | | reference conditions (2/2): inlet pipe length 10xDN, outlet pipe length 5xDN, device settling time: 30 minutes, device orientation: horizontal, display orientation: up |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
