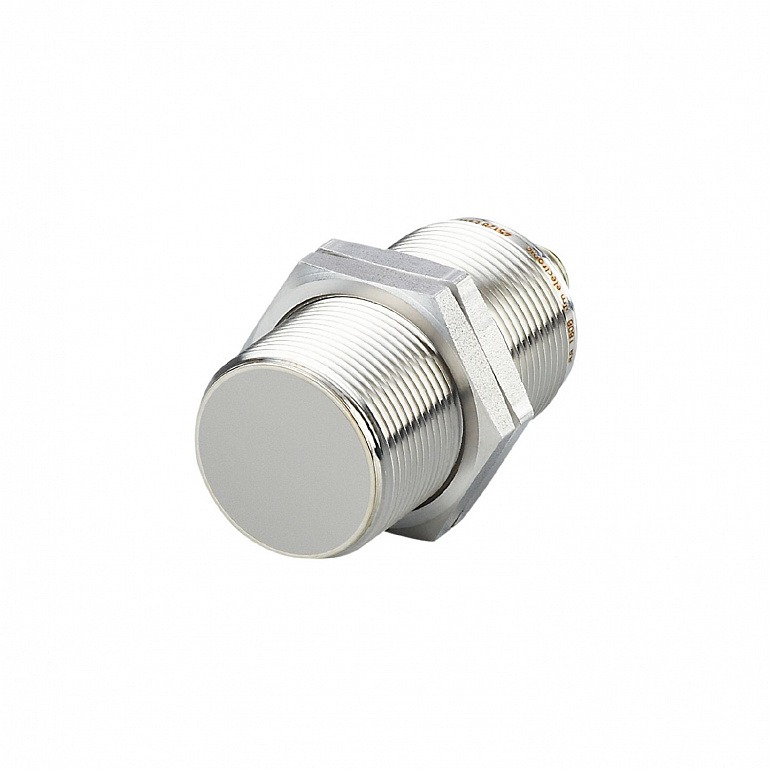

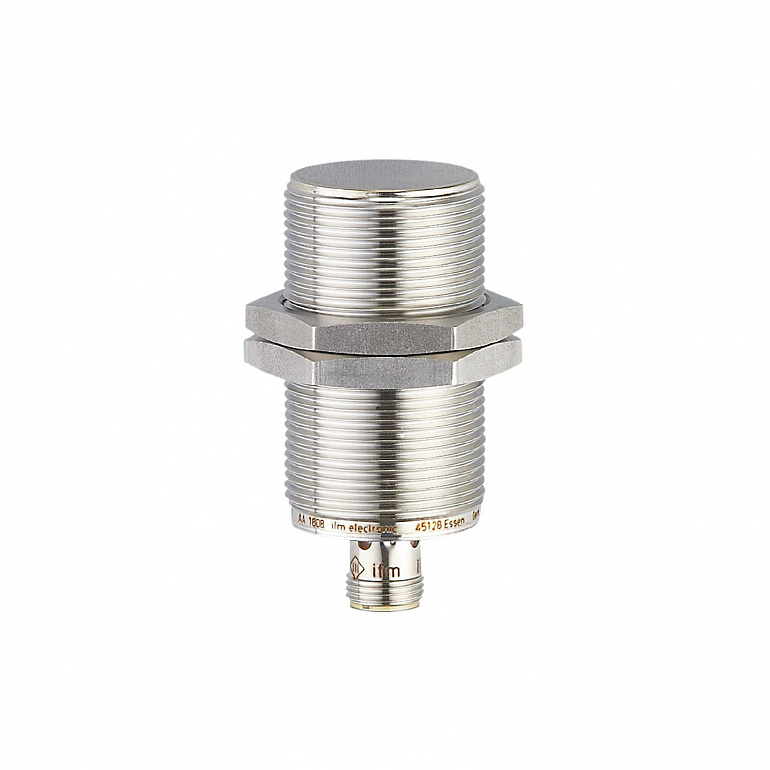

| Product characteristics |
|
| Electrical design |
PNP/NPN; (configurable) |
| Output function |
normally open / closed; (configurable) |
| Communication interface |
IO-Link |
| Housing |
Threaded type |
| Dimensions |
M30 x 1.5 / L = 65 |
| Application |
|
| System |
Full-metal housing |
| Application |
Oils and coolants |
| Pressure rating |
<table><tr><td>100 bar</td><td>10 MPa</td></tr></table> |
| Note on pressure rating |
<table><tr><td>sensing face </td></tr></table> |
| Electrical data |
|
| Operating voltage |
10...30 DC |
| Current consumption |
< 15 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Outputs |
|
| Electrical design |
PNP/NPN; (configurable) |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
50 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Monitoring range |
|
| Switch point IO-Link |
2.44...12.16; (configurable) |
| Measuring range IO-Link |
1.3...13 |
| Accuracy / deviations |
|
| Correction factor |
steel: 1 / stainless steel: 0.7 / brass: 0.6 / aluminum: 0.5 / copper: 0.2 |
| Hysteresis |
3...15 |
| Linearity error IO-Link |
± 2; (of the final value of the measuring range) |
| Repeatability IO-Link |
± 1; (of the final value of the measuring range) |
| Temperature coefficient |
± 0,3 %/K; (of the final value of the measuring range) |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Multiple switching signal</td></tr><tr><td>Function</td><td>Teach channel</td></tr><tr><td>Common - I&D</td><td>Identification and Diagnosis</td></tr></t |
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
3.2 |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>1090</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-40...85 |
| Protection |
IP 65; IP 66; IP 67; IP 68; IP 69K |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 61000-4-2 ESD</td><td>4 kV CD / 8 kV AD</td></tr><tr><td>EN 61000-4-3 HF radiated</td><td>10 V/m</td></tr><tr><td>EN 61000-4-4 Burst</td><td>2 kV</td></tr><tr><td>EN 61000-4-6 HF conducted</td><td>10 V</td></tr><tr><td>EN 55011</td><td>c |
| Impact resistance |
<table><tr><td></td><td>1 J</td></tr></table> |
| Vibration resistance |
<table><tr><td>EN 60068-2-6 Fc</td><td>20 g (10...3000 Hz) / 50 sweep cycles per frequency; 1 octave per minute in 3 axes</td></tr></table> |
| Shock resistance |
<table><tr><td>EN 60068-2-27 Ea</td><td>100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes</td></tr></table> |
| Continuous shock resistance |
<table><tr><td>EN 60068-2-27</td><td>40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes</td></tr></table> |
| Fast temperature changes |
<table><tr><td>EN 60068-2-14 Na</td><td>TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s 50 cycles</td></tr></table> |
| Salt spray test |
<table><tr><td>EN 60068-2-52 Kb</td><td>severity level 5 (4 test cycles)</td></tr></table> |
| MTTF |
635 |
| Embedded software included |
yes |
| UL approval |
<table><tr><td>Ta</td><td>-25...70 °C</td></tr><tr><td>Enclosure type</td><td>Type 1 </td></tr><tr><td>voltage supply</td><td>Limited Voltage/Current </td></tr><tr><td>UL approval number</td><td>A008 </td></tr><tr><td>File number UL</td><td>E174191 </td>< |
| Mechanical data |
|
| Weight |
130 |
| Housing |
Threaded type |
| Mounting |
flush mountable |
| Dimensions |
M30 x 1.5 / L = 65 |
| Thread designation |
M30 x 1.5 |
| Material |
stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: brass white bronze coated |
| Tightening torque |
80 |
| Full-metal housing |
yes |
| Displays / operating elements |
|
| Display |
<table><tr><td>Switching status</td><td>4 x LED, yellow</td></tr></table> |
| Accessories |
|
| Items supplied |
<table><tr><td>lock nuts: 2</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |

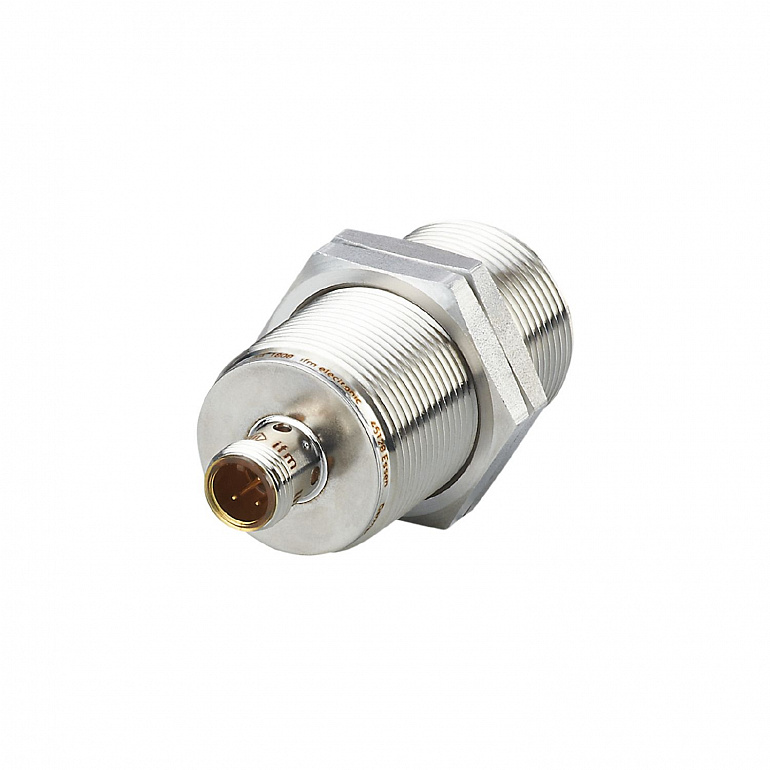

| Electrical connection |
|
| Connection |
Connector: 1 x M12; coding: A |
