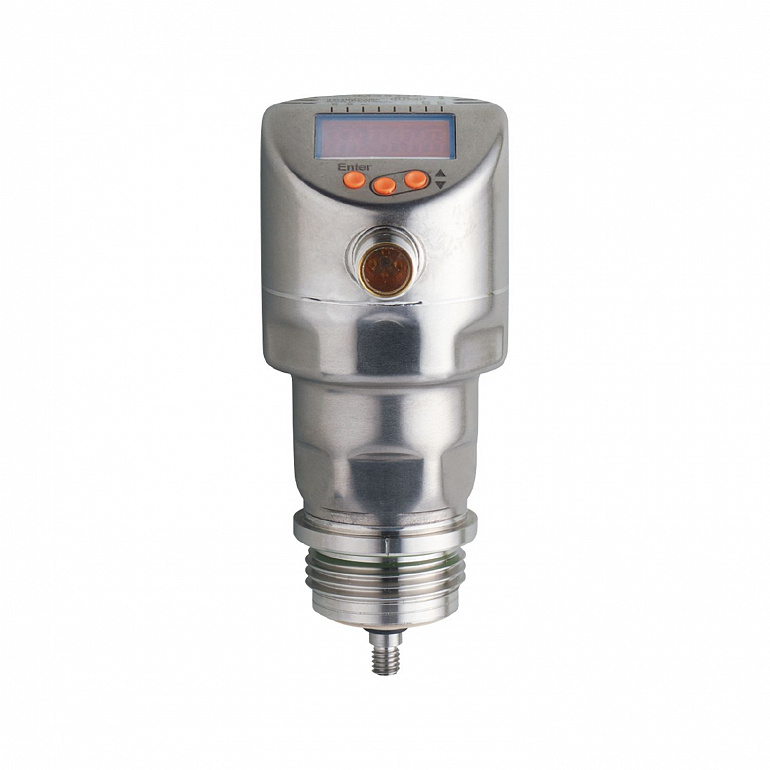

| Number of inputs and outputs |
Number of digital outputs: 1; Number of analog outputs: 1 |
| Probe length L |
150...2000 |
| Process connection |
threaded connection G 1 external thread Aseptoflex Vario |
| System |
gold-plated contacts |
| Application |
hygienic systems |
| Media |
Liquids |
| Dielectric constant of the medium |
> 5 |
| Recommended media |
water; water-based media |
| Process temperature |
-40...150; (see note under remarks) |
| Pressure rating |
|
| Vacuum resistance |
|
| MAWP (for applications according to CRN) |
25 |
| Operating voltage |
18...30 DC |
| Current consumption |
< 50 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 3 |
| Measuring principle |
guided wave radar |
| Number of inputs and outputs |
Number of digital outputs: 1; Number of analog outputs: 1 |
| Total number of outputs |
2 |
| Output signal |
switching signal; analog signal; IO-Link |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
1 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
150; (200 (...60 °C)) |
| Number of analog outputs |
1 |
| Analog current output |
4...20, invertible; (scalable) |
| Max. load |
500 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Probe length L |
150...2000 |
| Active range A |
L-40 |
| Inactive range I1 / I2 |
30 / 10 |
| Sampling rate |
4 |
| Set point SP |
15...L-30 |
| Reset point rP |
10... L-35 |
| In steps of |
1 |
| Hysteresis |
> 5 |
| Measuring error |
± 7 |
| Offset error |
5 |
| Resolution |
1 |
| Zero signal (current) |
4.0 |
| Full signal (current) |
20 |
| Temperature drift per 10 K |
± 0.2 % |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification | | Function | Process data variable | | Function | Device diagnosis |
|
| SIO mode |
yes |
| Required master port class |
A |
| Process data analog |
1 |
| Process data binary |
2 |
| Min. process cycle time |
2.3 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 478 |
|
| Ambient temperature |
-40...80 |
| Storage temperature |
-40...100 |
| Protection |
IP 68; IP 69K |
| EMC |
| DIN EN 61000-6-2 | | | DIN EN 61000-6-3 | : in a closed metal tank | | DIN EN 61000-6-4 | : in plastic or open metal tanks |
|
| Shock resistance |
| DIN EN 60068-2-27 | 50 g (11 ms) / 20 g (6 ms) with reference rod 0.5 m |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) / 1 g (5...200 Hz) with reference rod 0.5 m |
|
| MTTF |
216 |
| Weight |
330.75 |
| Material |
stainless steel (1.4404 / 316L); PEI; PFA; PBT; FKM |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L); PEEK; EPDM |
| Process connection |
threaded connection G 1 external thread Aseptoflex Vario |
| Surface characteristics Ra/Rz of the wetted parts |
Ra < 0.8 µm |
| Display |
| Display unit | 3 x LED, green | | Switching status | 2 x LED, yellow | | Level | alphanumeric display, 4-digit | | Parameter setting | alphanumeric display, 4-digit |
|
| Notes |
For high process temperatures: The temperature at the process connection is decisive. The actual medium temperature may be higher.; For 3-A applications, the medium temperature is limited to 121 °C and COP cleaning is required. |
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
