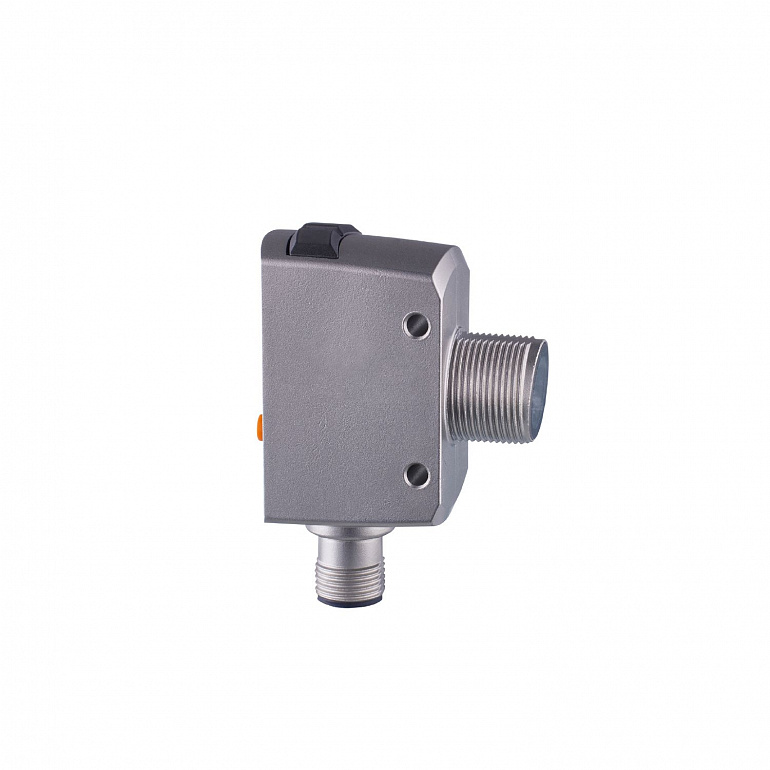

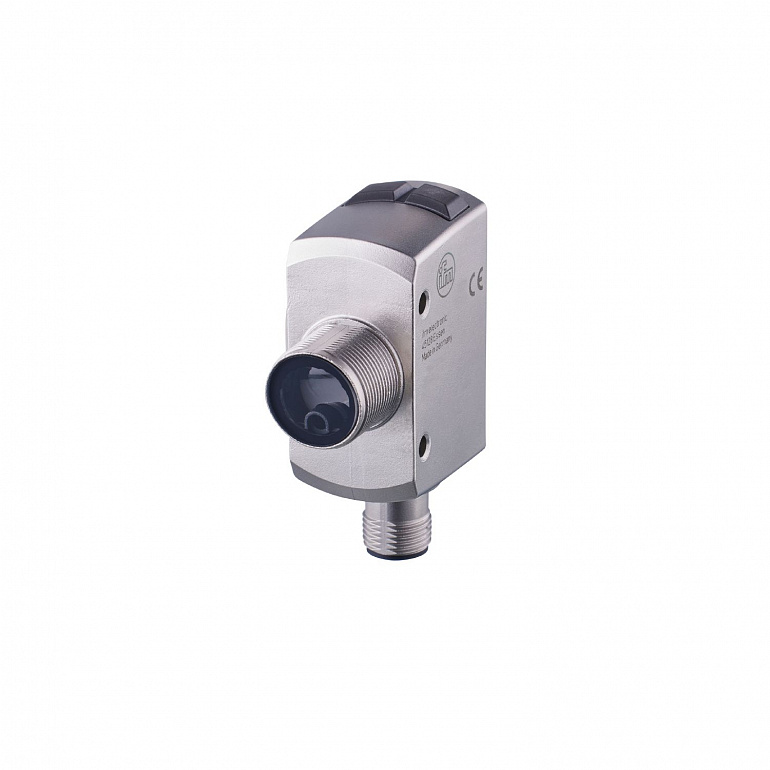

| Product characteristics |
|
| Type of light |
red light |
| Laser protection class |
1 |
| Housing |
rectangular with M18 thread |
| Electrical data |
|
| Operating voltage |
18...30 DC; (cULus - Class 2 source required) |
| Current consumption |
45; (24 V) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length |
650 |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analog outputs: 1 |
| Inputs |
|
| Inputs |
Laser On/ Off |
| Outputs |
|
| Total number of outputs |
2 |
| Electrical design |
PNP/NPN; (configurable) |
| Number of digital outputs |
2 |
| Output function |
2 x normally open / normally closed; (configurable) |
| Max. current load per output |
100 |
| Number of analog outputs |
1 |
| Analog current output |
4...20; (IEC 61131-2) |
| Max. load |
500 |
| Analog voltage output |
0...10; (IEC 61131-2) |
| Min. load resistance |
2500 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Operating mode: FINE |
|
| Measuring range |
0.05...2 |
| Sampling rate |
60 |
| Operating mode: STD |
|
| Measuring range |
0.05...2 |
| Sampling rate |
120 |
| Operating mode: FAST |
|
| Measuring range |
0.05...1 |
| Sampling rate |
180 |
| Monitoring range |
|
| Max. light spot diameter |
5 |
| Light spot dimensions refer to |
at maximum range |
| Background suppression |
< 20 |
| Measuring/setting range |
|
| Setting range object reflectivity |
6...900; (reflectivity; 6 % black paper; 100 % white paper) |
| Software / programming |
|
| Parameter setting options |
Distance / reflectivity; hysteresis / window; sequence modulation to avoid mutual interference between up to 5 similar devices; sensitivity; current/voltage output |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1.3 |
| SDCI standard |
IEC 61131-9 |
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
5 |
| IO-Link process data (cyclical) |
<table><tr><th>Function</th><th>bit length</th></tr><tr><td>process value</td><td>2 x 16</td></tr><tr><td>device status</td><td>4</td></tr><tr><td>binary switching information</td><td>2</td></tr></table> |
| IO-Link functions (acyclical) |
application specific tag; operating hours counter; switching cycles counter |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>Default: OGD551</td><td>1582</td></tr><tr><td>OGD580 / OGD581</td><td>925</td></tr><tr><td>OGD582 / OGD583</td><td>926</td></tr><tr><td>OGD585 / OGD586</td><td>1065</td></tr><tr><td>OGD592 |
| Note |
<table><tr><td> For further information please see the IODD PDF file at "Downloads"</td></tr></table> |
| Default: OGD551 |
|
| Profiles |
<table><tr><td>Common - I&D</td><td>Identification and Diagnosis</td></tr><tr><td>Function</td><td>Locator</td></tr><tr><td>Function</td><td>ProductURI</td></tr></table> |
| OGD580 / OGD581 |
|
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Device identification</td></tr><tr><td>Function</td><td>Process data variable</td></tr><tr><td>Function</td><td>Device diagnosis</td></tr><tr><td>Functio |
| OGD582 / OGD583 |
|
| Profiles |
<table><tr><td>Function</td><td>Device identification</td></tr><tr><td>Function</td><td>Process data variable</td></tr><tr><td>Function</td><td>Device diagnosis</td></tr></table> |
| OGD585 / OGD586 |
|
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Device identification</td></tr><tr><td>Function</td><td>Process data variable</td></tr><tr><td>Function</td><td>Device diagnosis</td></tr><tr><td>Functio |
| OGD592 / OGD593 |
|
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Device identification</td></tr><tr><td>Function</td><td>Process data variable</td></tr><tr><td>Function</td><td>Device diagnosis</td></tr><tr><td>Functio |
| OGD596 / OGD597 |
|
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Device identification</td></tr><tr><td>Function</td><td>Process data variable</td></tr><tr><td>Function</td><td>Device diagnosis</td></tr><tr><td>Functio |
| Operating conditions |
|
| Ambient temperature |
-25...55 |
| Note on ambient temperature |
<table><tr><td> In ambient temperatures < -10 °C a warm-up time is necessary.</td></tr><tr><td> Laser is off.</td></tr></table> |
| Storage temperature |
-30...80 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>EN 60947-5-2</td><td></td></tr></table> |
| Laser protection class |
1 |
| Notes on laser protection |
<table><tr><td>Caution:</td><td>Laser light</td></tr><tr><td>laser class:</td><td>1</td></tr><tr><td></td><td>EN / IEC60825-1:2007</td></tr><tr><td></td><td>EN / IEC60825-1:2014</td></tr><tr><td></td><td>Complies with 21 CFR 1040.10 except for conformance |
| MTTF |
258 |
| UL approval |
<table><tr><td>Ta</td><td>-25...60 °C</td></tr><tr><td>Enclosure type</td><td>Type 1 </td></tr><tr><td>voltage supply</td><td>Class 2 </td></tr><tr><td>File number UL</td><td>E174191 </td></tr></table> |
| Mechanical data |
|
| Weight |
134.8 |
| Housing |
rectangular with M18 thread |
| Dimensions |
61.7 x 22.5 x 45.2 |
| Thread designation |
M18 x 1 |
| Material |
housing: stainless steel (1.4404 / 316L); PPSU; ABS; PMMA; PBT / PC; EPDM; front lens: PMMA |
| Lens alignment |
Side sensing |

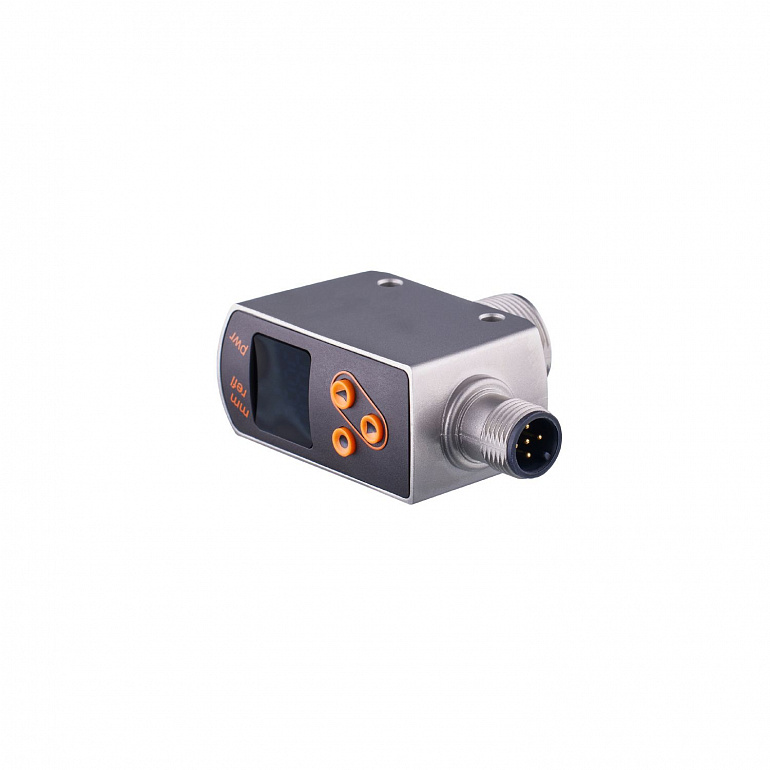

| Displays / operating elements |
|
| Display |
<table><tr><td>Switching status</td><td>2 x LED, yellow</td></tr><tr><td></td><td>1 x alphanumeric display, 4-digit</td></tr></table> |
| Operating elements |
<table><tr><td>3</td><td>pushbuttons</td></tr></table> |
| Accessories |
|
| Items supplied |
<table><tr><td>lock nuts: 2</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection - plug |
|
| Connection |
Connector: 1 x M12; coding: A |
