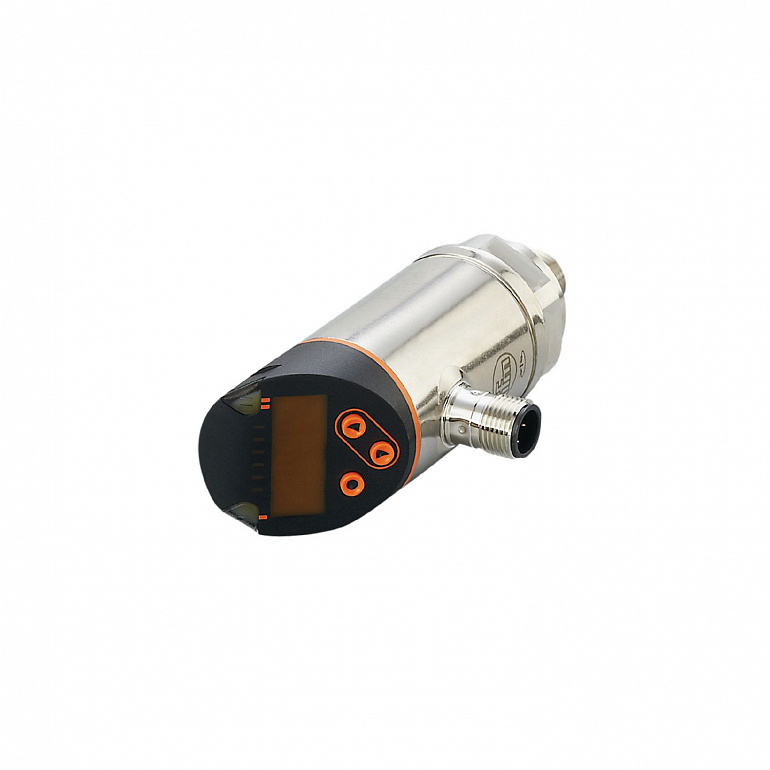

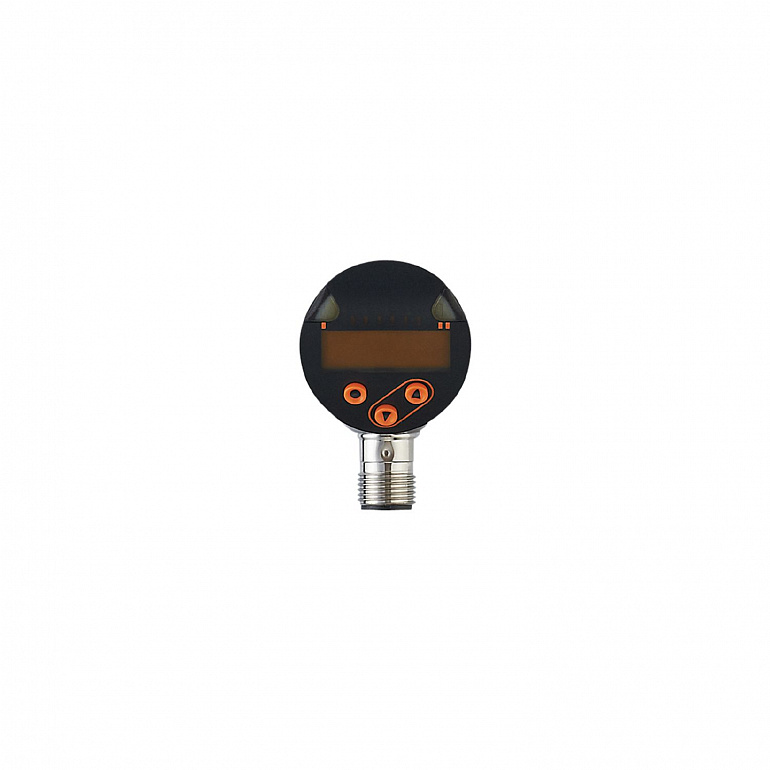

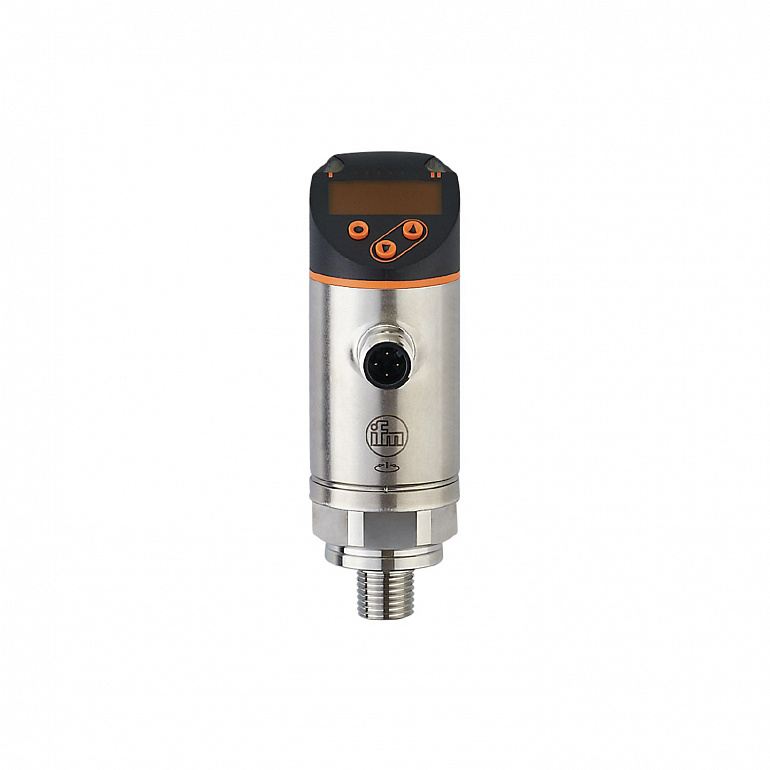

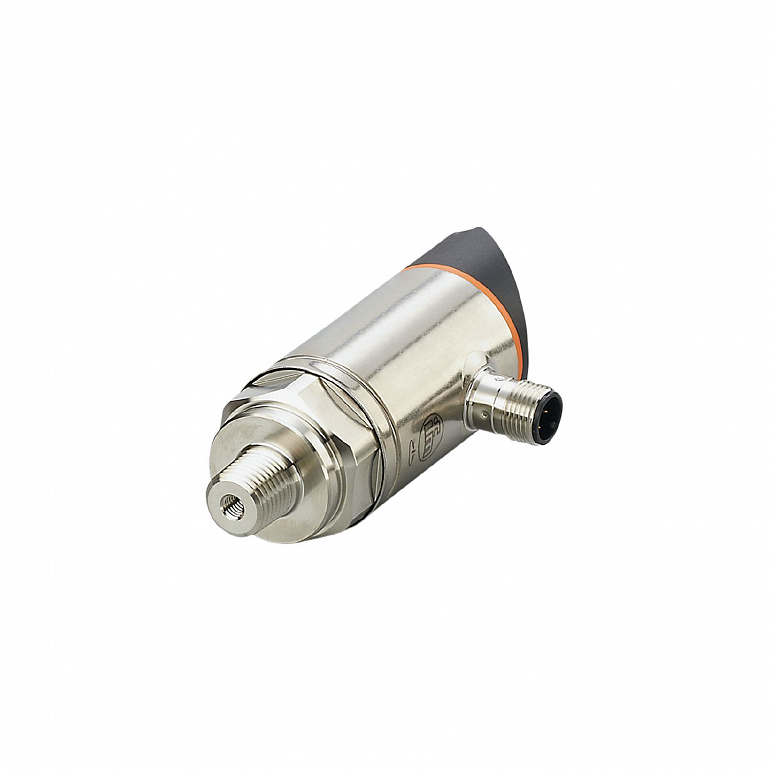

| Product characteristics |
|
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Measuring range |
<table><tr><td>-1...10 bar</td><td>-14.5...145 psi</td><td>-100...1000 kPa</td><td>-0.1...1 MPa</td></tr></table> |
| Process connection |
threaded connection 1/4" NPT external thread |
| Application |
|
| System |
gold-plated contacts |
| Measuring element |
ceramic-capacitive pressure measuring cell |
| Application |
for industrial applications |
| Media |
liquids and gases |
| Medium temperature |
-25...80 |
| Min. bursting pressure |
<table><tr><td>150 bar</td><td>2175 psi</td><td>15 MPa</td></tr></table> |
| Pressure rating |
<table><tr><td>75 bar</td><td>1087 psi</td><td>7.5 MPa</td></tr></table> |
| Type of pressure |
relative pressure; vacuum |
| MAWP (for applications according to CRN) |
<table><tr><td>50 bar</td><td>725 psi</td><td>5 MPa</td></tr></table> |
| Electrical data |
|
| Operating voltage |
18...30 DC; (to SELV/PELV) |
| Current consumption |
< 35 |
| Min. insulation resistance |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time |
< 0.3 |
| Integrated watchdog |
yes |
| Inputs / outputs |
|
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Outputs |
|
| Total number of outputs |
2 |
| Output signal |
switching signal; IO-Link; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
150; (200 (...60 °C) 250 (...40 °C)) |
| Switching frequency DC |
< 170 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Measuring/setting range |
|
| Measuring range |
<table><tr><td>-1...10 bar</td><td>-14.5...145 psi</td><td>-100...1000 kPa</td><td>-0.1...1 MPa</td></tr></table> |
| Factory setting / CMPT = 2 |
|
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Device identification</td></tr><tr><td>Function</td><td>Process data variable</td></tr><tr><td>Function</td><td>Device diagnosis</td></tr></table> |
| Min. process cycle time |
2.3 |
| IO-Link resolution pressure |
<table><tr><td>0.01 bar</td><td>0.001 MPa</td></tr></table> |
| IO-Link process data (cyclical) |
<table><tr><th>Function</th><th>bit length</th></tr><tr><td>pressure</td><td>14</td></tr><tr><td>binary switching information</td><td>2</td></tr></table> |
| IO-Link functions (acyclical) |
application specific tag |
| Status_B High Resolution / CMPT = 3 |
|
| Profiles |
<table><tr><td>Smart Sensor - SSP 3.1</td><td>Measuring Sensor</td></tr><tr><td>Common - I&D</td><td>Identification and Diagnosis</td></tr></table> |
| Min. process cycle time |
3 |
| IO-Link resolution pressure |
<table><tr><td>0.005 bar</td><td>0.0005 MPa</td></tr></table> |
| IO-Link process data (cyclical) |
<table><tr><th>Function</th><th>bit length</th></tr><tr><td>pressure</td><td>16</td></tr><tr><td>device status</td><td>4</td></tr><tr><td>binary switching information</td><td>2</td></tr></table> |
| IO-Link functions (acyclical) |
application specific tag |
| Accuracy / deviations |
|
| Switch point accuracy |
< ± 0,5 |
| Repeatability |
< ± 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation |
< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Hysteresis deviation |
< ± 0,25 |
| Long-term stability |
< ± 0,05; (per 6 months) |
| Temperature coefficient zero point |
< ± 0,2; (-0...80 °C) |
| Temperature coefficient span |
< ± 0,2; (-0...80 °C) |
| Reaction times |
|
| Response time |
< 3 |
| Delay time programmable dS, dr |
0...50 |
| Software / programming |
|
| Parameter setting options |
hysteresis / window; normally open / closed; switching logic; switch-on/switch-off delay; Damping; Display unit |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| SIO mode |
yes |
| Required master port class |
A; (when pin 2 not connected: B) |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>Factory setting / CMPT = 2</td><td>454</td></tr><tr><td>Status_B High Resolution / CMPT = 3</td><td>632</td></tr></table> |
| Note |
<table><tr><td> For further information please see the IODD PDF file at "Downloads"</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-25...80 |
| Storage temperature |
-40...100 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
|
| EMC |
<table><tr><td>DIN EN 61000-6-2</td><td></td></tr><tr><td>DIN EN 61000-6-3</td><td></td></tr></table> |
| Shock resistance |
<table><tr><td>DIN EN 60068-2-27</td><td>50 g (11 ms)</td></tr></table> |
| Vibration resistance |
<table><tr><td>DIN EN 60068-2-6</td><td>20 g (10...2000 Hz)</td></tr></table> |
| MTTF |
260 |
| UL approval |
<table><tr><td>UL approval number</td><td>J001 </td></tr></table> |
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Mechanical data |
|
| Weight |
243.5 |
| Housing |
tubular |
| Dimensions |
Ø 34 / L = 90.7 |
| Material |
stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC |
| Materials (wetted parts) |
stainless steel (1.4404 / 316L); ceramics; FKM |
| Min. pressure cycles |
100 million |
| Process connection |
threaded connection 1/4" NPT external thread |
| Restrictor element integrated |
no (can be retrofitted) |
| Displays / operating elements |
|
| Display |
<table><tr><td>Display unit</td><td>3 x LED, green (bar, psi, MPa)</td></tr><tr><td>Switching status</td><td>2 x LED, yellow</td></tr><tr><td>Measured values</td><td>alphanumeric display, red/green 4-digit</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
