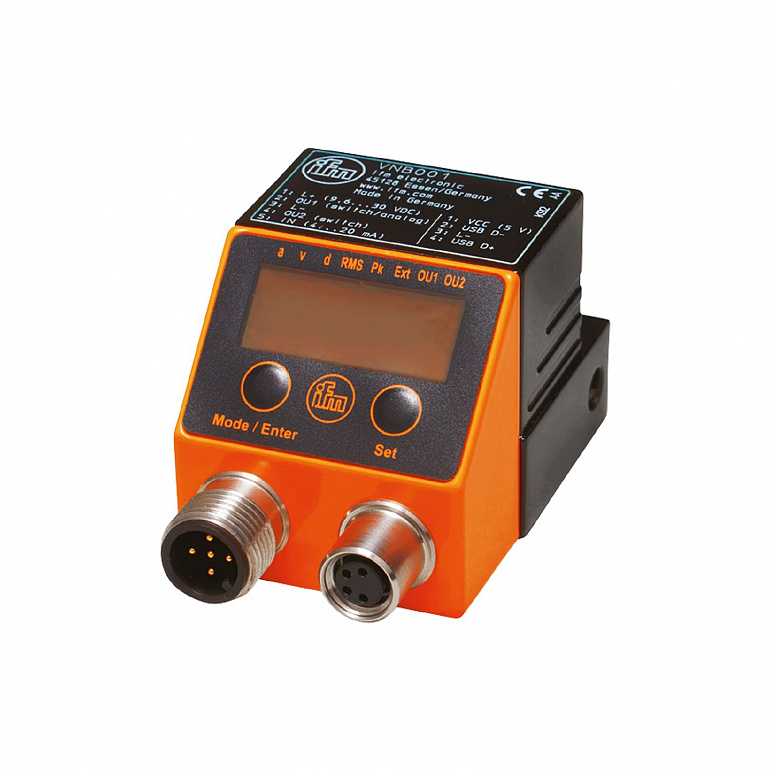

| Measuring range of vibration |
0...500; (depending on the vibration frequency) |
| Frequency range |
2...1000 |
| Measuring principle |
capacitive |
| Application |
Vibration sensor to ISO 10816 |
| Self-test function |
yes |
| Heartbeat |
yes |
| Operating voltage |
9.6...30 DC; (or via USB (switching outputs not active)) |
| Current consumption |
< 70 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of sensor |
micromechanical accelerometer |
| Total number of inputs and outputs |
3; (configurable) |
| Number of inputs and outputs |
Number of analog inputs: 1; Number of digital outputs: 2; Number of analog outputs: 1 |
| Number of analog inputs |
1 |
| Analog input (current) |
4...20 |
| Output signal |
switching signal; analog signal |
| Number of digital outputs |
2 |
| Max. voltage drop switching output DC |
2 |
| Minimum load current |
100 |
| Number of analog outputs |
1 |
| Analog current output |
4...22 |
| Max. load |
9,6...17 V: 150; 17...30 V: 500 |
| Factory setting |
| Switching output: normally closed | | switch point pre-alarm: 2,8 mm/s | | switch point main alarm: 4,5 mm/s | | Frequency range: 10...1000 Hz | | measuring method: RMS | | unit: mm/s |
|
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Measuring range of vibration |
0...500; (depending on the vibration frequency) |
| Frequency range |
2...1000 |
| Measuring principle |
capacitive |
| Number of measurement axes |
1 |
| Measuring error |
± 3% |
| Communication interface |
USB |
| Ambient temperature |
-30...60 |
| Storage temperature |
-30...85 |
| Protection |
IP 67 |
| EMC |
| EN 61000-4-2 ESD | 4 kV contact discharge / 15 kV air discharge | | EN 61000-4-3 | 10 V/m 80...2000 MHz | | EN 61000-4-4 Burst | 4 kV capacitive coupling probe, earthed | | EN 61000-4-6 | 10 V 0,15...80 MHz | | EN 61000-6-4 | industrial environments |
|
| Shock resistance |
| DIN EN 60068-2-27 | 50 g 11 ms / n=1000 |
|
| MTTF |
148 |
| Weight |
227.8 |
| Type of mounting |
Mounting set M5 / M8 |
| Dimensions |
36 x 37.6 x 62.4 |
| Material |
housing: diecast zinc nickel-plated |
| Tightening torque |
7 |
| Display |
| Function | 6 x LED, green | | pre-alarm | 1 x LED, yellow | | main alarm | 1 x LED, red | | Measured values | 7-segment LED display, red / yellow / green 4-digit |
|
| Operating elements |
|
| History memory |
yes |
| Data memory type |
ring memory; FIFO |
| Real-time clock |
yes; UTC, battery buffered |
| Memory location |
internal |
| Memory interval |
5 min |
| Memory size |
686774 data records |
| Items supplied |
| Spring washer | | screw | | adapters: 1 x (M8 / M5) |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12; coding: A |
|
Connector: 1 x M8; coding: A |
