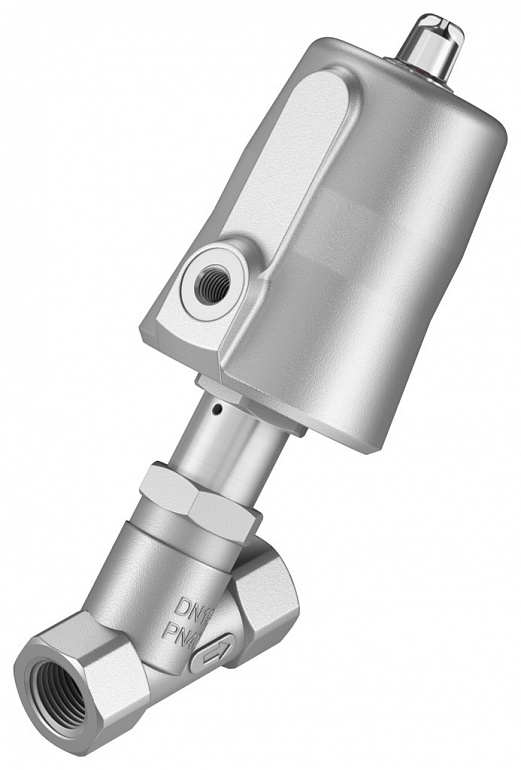

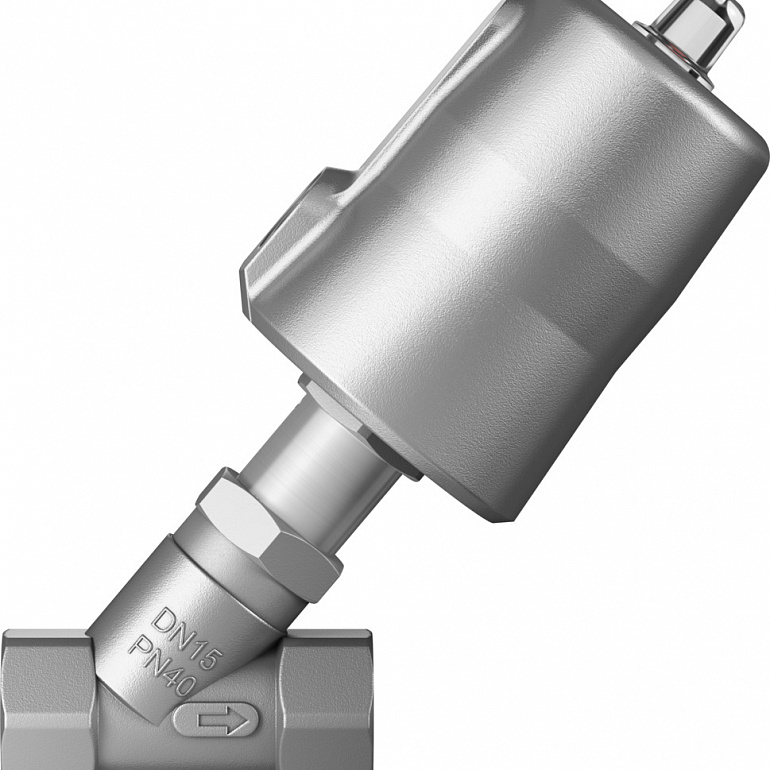

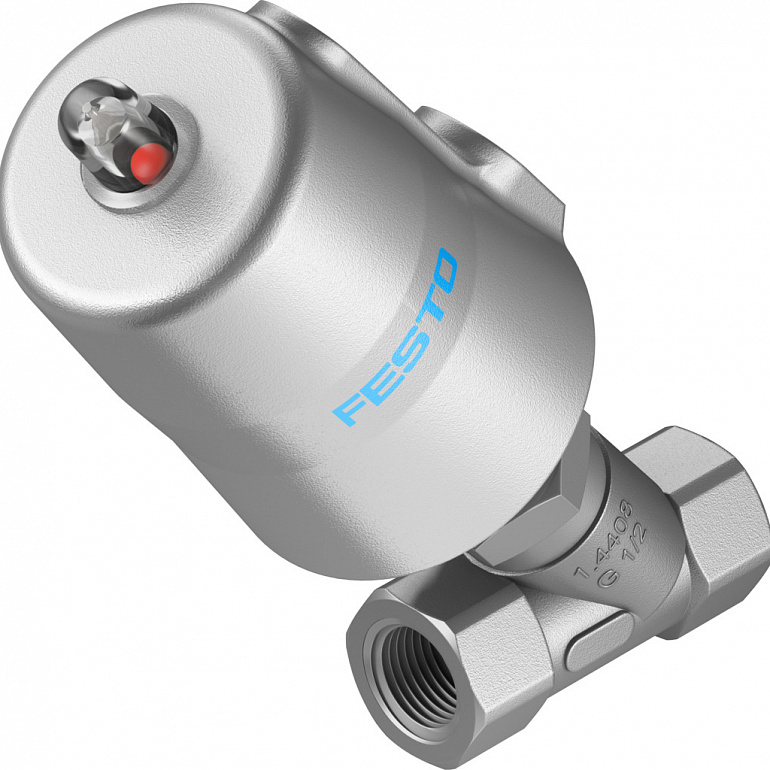

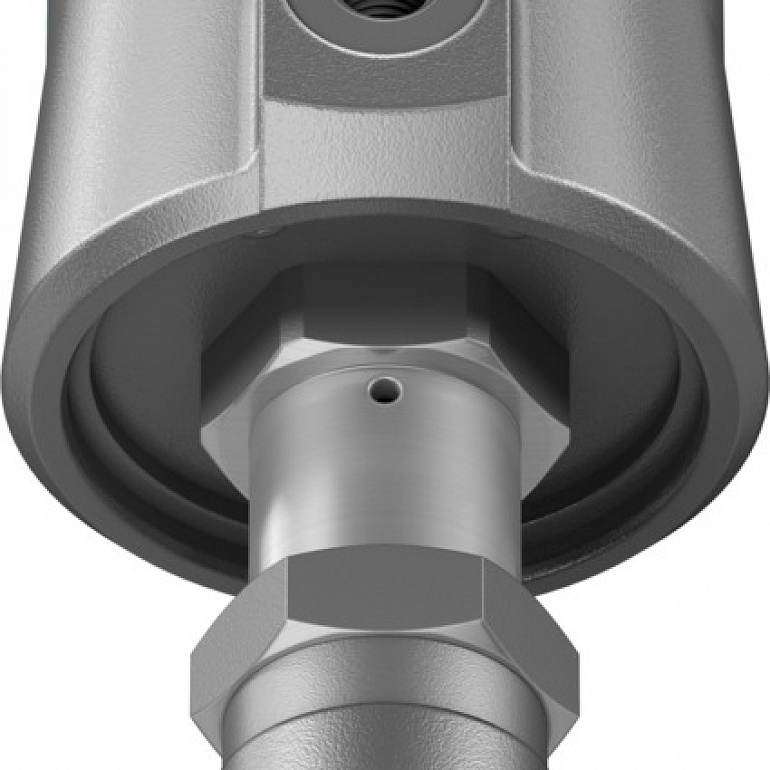

| Technical Data |
|
| Design |
Poppet valve with piston drive |
| Type of actuation |
Pneumatic |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Type of mounting |
In-line installation |
| Line connection |
Threaded coupling 1/2 NPT as per ANSI/ASME B 1.20.1 |
| Nominal size |
13 |
| Valve function |
2/2-way, closed, monostable |
| Flow direction |
Non-reversible |
| Medium pressure |
040 |
| Nominal pressure PN |
40 |
| Exhaust-air function |
Without flow control option |
| Type of reset |
Mechanical spring |
| Type of piloting |
Externally controlled |
| Pneumatic connection |
Female thread G1/8 |
| Operating pressure |
87145 |
| Symbol |
00991367 |
| Medium |
VapourMineral oil-based hydraulic fluidInert gasesMineral oilWaterFiltered compressed air, grade of filtration 200 µmNeutral fluids |
| Direction of flow |
Below valve seat, for gaseous and liquid media |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Max. viscosity |
600 |
| Media temperature |
-40200 |
| Ambient temperature |
-1060 |
| Flow rate Kv |
3.3 |
| Note on materials |
RoHS-compliant |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Material process valve housing |
Stainless steel casting |
| Material number process valve housing |
1.4408 |
| Material spindle seal |
PTFE |
| Material seat seal |
PTFE |
| Product weight |
1300 |
| Corrosion resistance class CRC |
3 - high corrosion stress |
| Material drive housing |
High-alloy stainless steel |
