SKU: 8214545
GTIN: 4052568788735
Характеристики

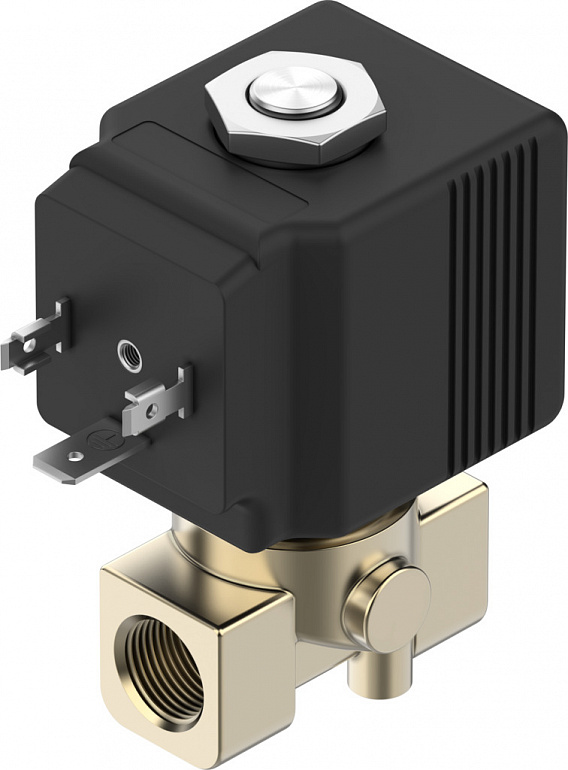

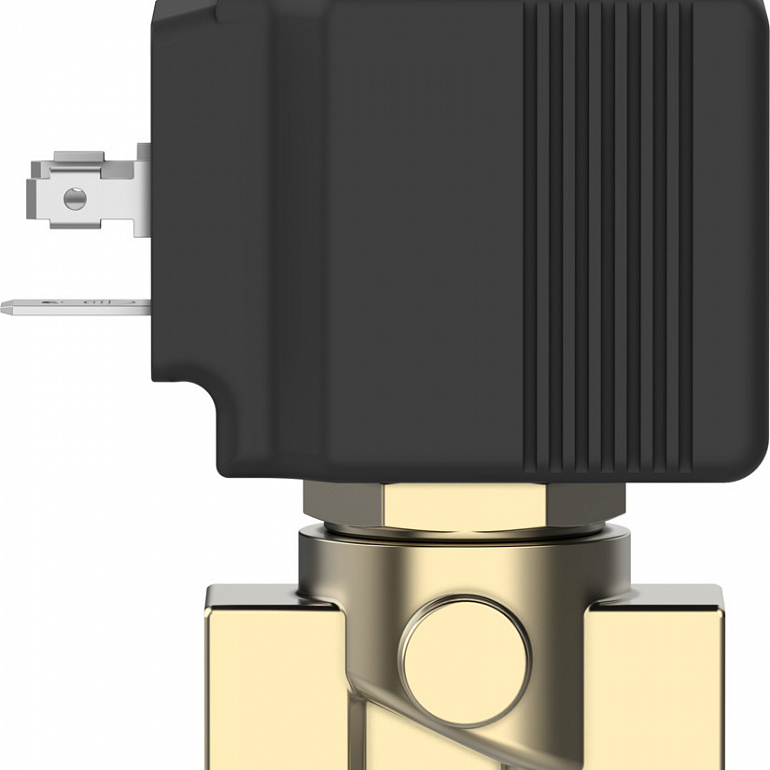

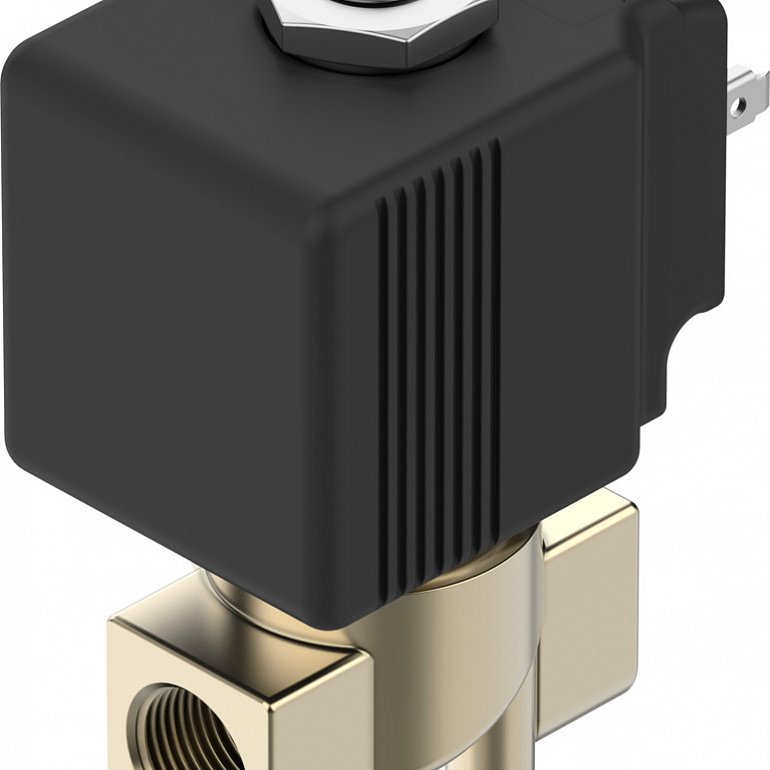

| Design | Directly actuated poppet valve |
| Flow rate Kv | 0.15 |
| Connection Process valve | G1/4 |
| Type of actuation | Electric |
Все характеристики
| Technical Data | |
| Design | Directly actuated poppet valve |
| Type of actuation | Electric |
| Sealing principle | Soft |
| Mounting position | optional |
| Type of mounting | In-line installation |
| Connection Process valve | G1/4 |
| Electrical connection | Type APlugsTo EN 175301-803Square design |
| Nominal size | 2.5 |
| Valve function | 2/2-way, closed, monostable |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Compressed air to ISO 8573-1:2010 [7:4:4]Inert gasesMineral oilWaterNeutral fluidsOther media on request |
| Pressure difference | 0 |
| Characteristic coil data | 110 V AC: 50/60 Hz, pick-up power 40.0 VA, holding power 30.0 VA |
| Insulation material class | H |
| Permissible voltage fluctuations | +15% / -10% |
| Duty cycle | 100% |
| Type of reset | Mechanical spring |
| Type of piloting | Direct |
| Symbol | 00992979 |
| Medium pressure | 0507.5 |
| Max. viscosity | 25 |
| Media temperature | -10140 |
| Ambient temperature | -1080 |
| Flow rate Kv | 0.15 |
| Switching time on | 8 |
| Switching time off | 25 |
| Note on materials | RoHS-compliant |
| Material housing | Brass |
| Material number housing | CW617N |
| Material seals | FPM |
| Product weight | 380 |
| CE mark (see declaration of conformity) | To EU EMC DirectiveTo EU Low Voltage DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMCTo UK RoHS instructionsTo UK regulations for electrical equipment |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
