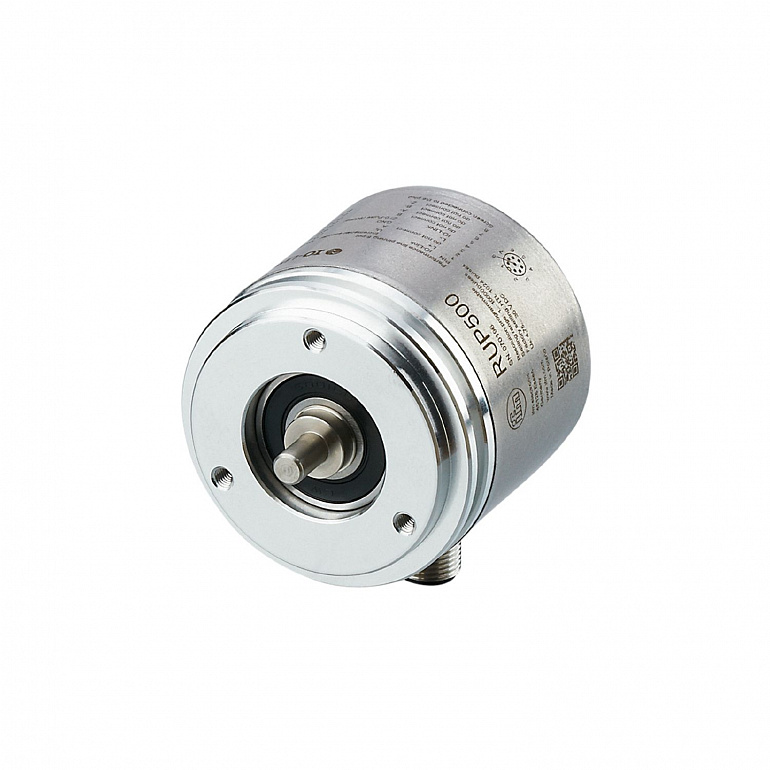

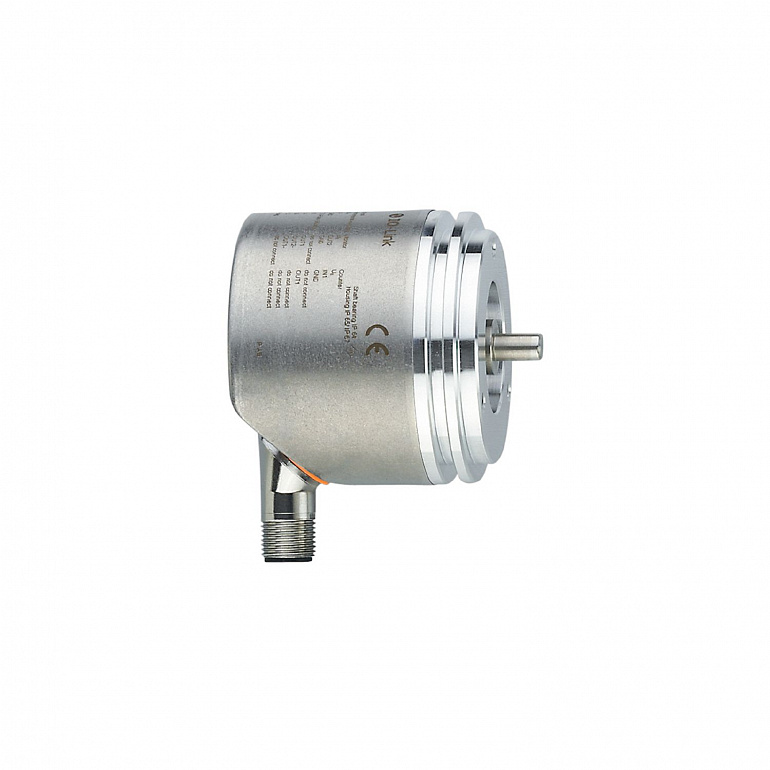

| Product characteristics |
|
| Resolution |
1...10000; (configurable; Factory setting: 1024) resolution |
| Communication interface |
IO-Link |
| Shaft design |
solid shaft |
| Shaft diameter |
6 |
| Application |
|
| Function principle |
incremental |
| Detection system |
magnetic |
| Application |
encoder; Speed monitor; Counter |
| Electrical data |
|
| Operating voltage |
4.75...30 DC |
| Current consumption |
< 350 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. revolution electrical |
12000 |
| Outputs |
|
| Electrical design |
HTL/TTL |
| Switching frequency |
1000 |
| Factory setting |
<table><tr><td>Output function: HTL (50 mA)</td></tr></table> |
| Short-circuit protection |
yes |
| Phase difference A und B |
90 |
| Measuring/setting range |
|
| Resolution |
1...10000; (configurable; Factory setting: 1024) resolution |
| Speed monitor |
|
| Set point SP |
<table><tr><td>-9994...9999 U/min</td><td>-166.6...166.7 Hz</td></tr></table> |
| Reset point rP |
<table><tr><td>-9999...9994 U/min</td><td>-166.7...166.6 Hz</td></tr></table> |
| Counter |
|
| Preset point |
1...9999 |
| Accuracy / deviations |
|
| Accuracy |
0.1 |
| Software / programming |
|
| Parameter setting options |
encoder; Resolution; Direction of rotation; HTL; TTL; Speed monitor; Resolution |
| Interfaces |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| Profiles |
<table><tr><td>Smart Sensor - SSP 0</td><td>Generic Profiled Sensor</td></tr><tr><td>Function</td><td>Device identification</td></tr><tr><td>Function</td><td>Process data variable</td></tr><tr><td>Function</td><td>Device diagnosis</td></tr></table> |
| SIO mode |
yes |
| Min. process cycle time |
2.7 |
| Supported DeviceIDs |
<table><tr><th>Type of operation</th><th>DeviceID</th></tr><tr><td>default</td><td>496</td></tr></table> |
| Operating conditions |
|
| Ambient temperature |
-40...85 |
| Storage temperature |
-40...85 |
| Max. relative air humidity |
95; (Condensation not permissible) |
| Protection |
IP 65; (on the housing: IP 67; on the shaft: IP 64) |
| Tests / approvals |
|
| Shock resistance |
<table><tr><td></td><td>100 g</td></tr></table> |
| Vibration resistance |
<table><tr><td></td><td>20 g</td></tr></table> |
| MTTF |
218 |
| Mechanical data |
|
| Weight |
437 |
| Housing |
tubular |
| Dimensions |
Ø 58 / L = 64 |
| Material |
flange: aluminum; housing: stainless steel; display window: PEI |
| Max. revolution, mechanical |
12000 |
| Max. starting torque |
0.01 |
| Reference temperature torque |
20 |
| Shaft design |
solid shaft |
| Shaft diameter |
6 |
| Shaft material |
<table><tr><td>stainless steel</td></tr></table> |
| Max. shaft load axial (at the shaft end) |
40 |
| Max. shaft load radial (at the shaft end) |
60 |
| Fixing flange |
Synchro-flange |
| Displays / operating elements |
|

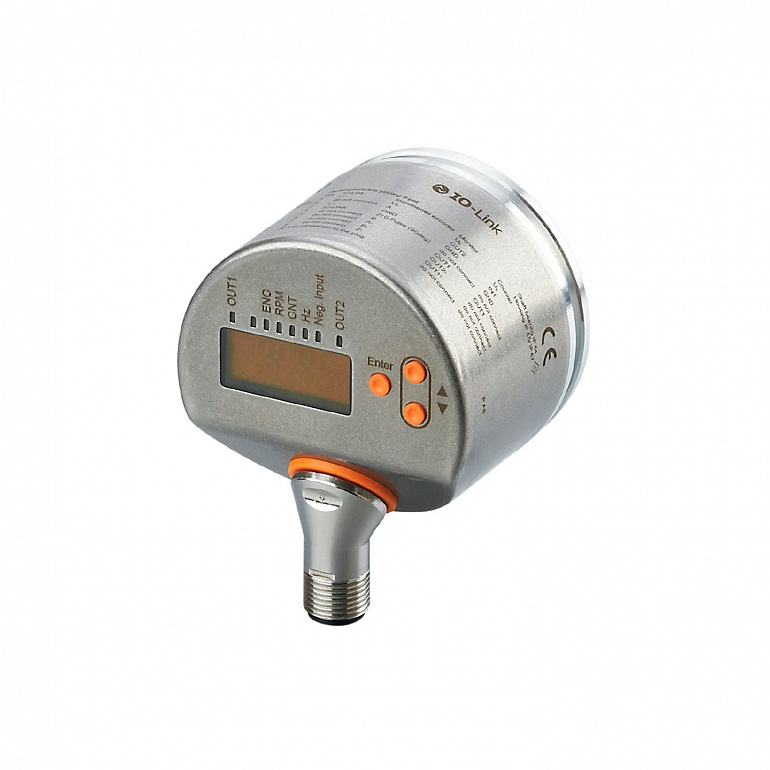

| Display |
<table><tr><td></td><td>10-segment display, red/green 4-digit configurable</td></tr><tr><td></td><td>2 x LED, yellow</td></tr><tr><td></td><td>5 x LED, green</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
|
| IO-Link |
Connector: 1 x M12, radial, can also be used axially; coding: A; Moulded body: stainless steel; Maximum cable length: 100 m; (IO-Link: max. 20 m) |
