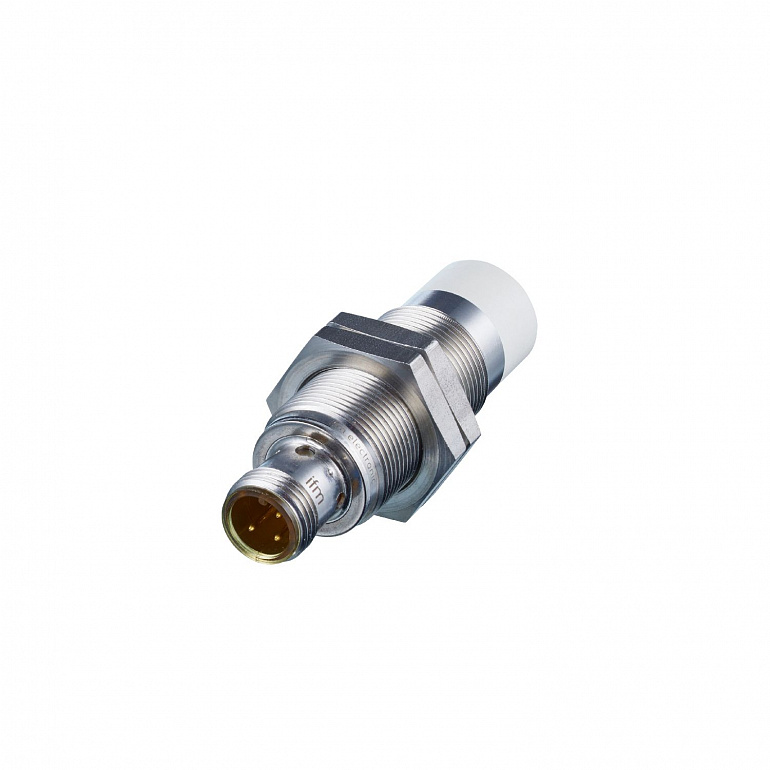

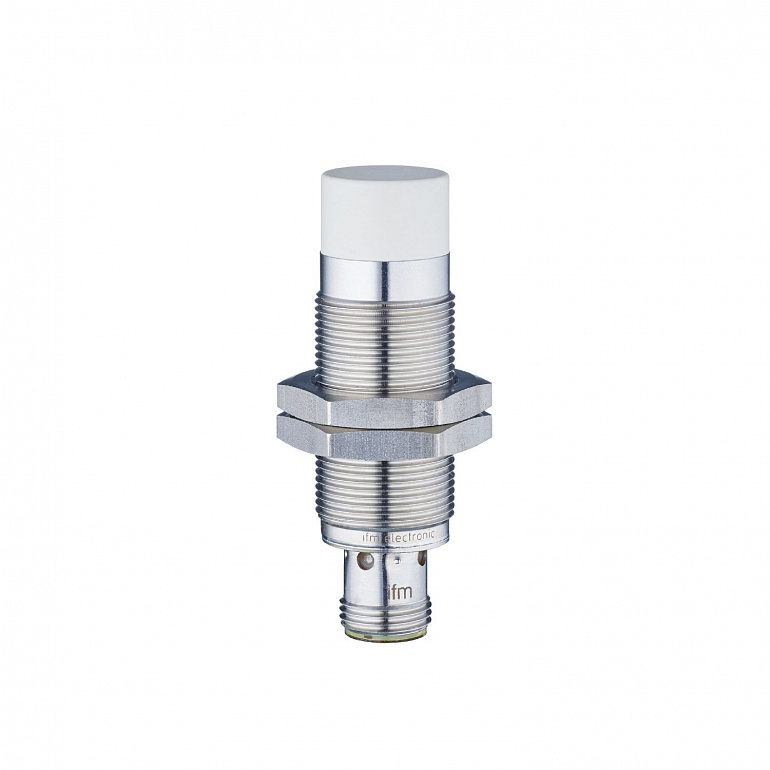

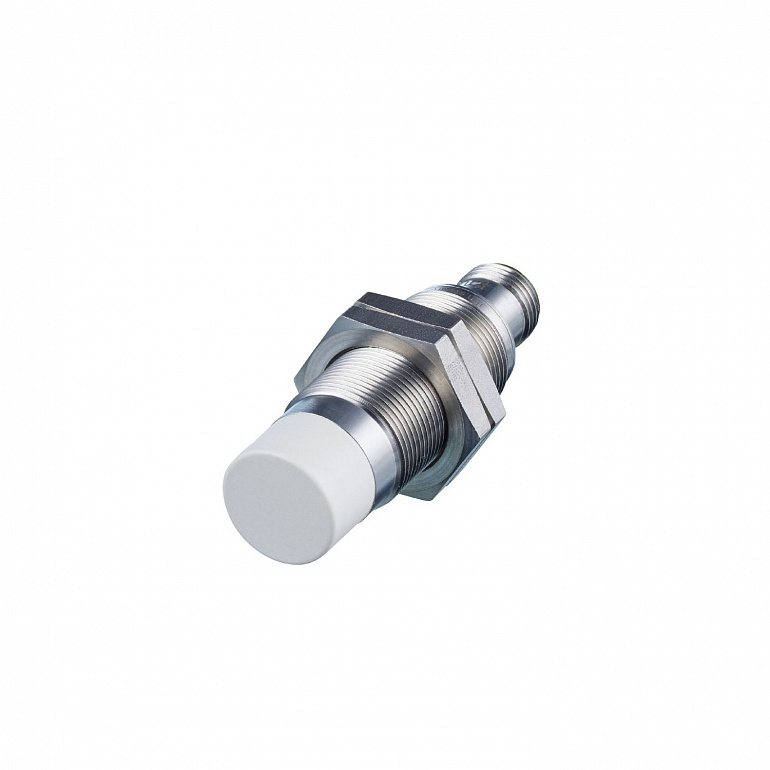

| Electrical design |
PNP/NPN; (configurable) |
| Output function |
normally open / closed; (configurable) |
| Communication interface |
IO-Link |
| Housing |
Threaded type |
| Dimensions |
M18 x 1 / L = 60 |
| System |
Magnetic-field immune |
| Magnetic-field immune |
yes |
| Max. electromagnetic field immunity |
300 |
| Operating voltage |
10...30 DC |
| Current consumption |
< 20 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Electrical design |
PNP/NPN; (configurable) |
| Output function |
normally open / closed; (configurable) |
| Max. voltage drop switching output DC |
2.5 |
| Permanent current rating of switching output DC |
100 |
| Switching frequency DC |
75 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Switch point IO-Link |
1.6...7.76 |
| Measuring range IO-Link |
0.8...8 |
| Repeatability |
< 20 µm |
| Resolution |
10 |
| Temperature drift |
± 3,2 µm/K |
| Linearity deviation |
± 20 µm |
| Resolution |
10 |
| Temperature drift |
± 4,8 µm/K |
| Linearity deviation |
± 100 µm |
| Resolution |
10 |
| Temperature drift |
± 4,8 µm/K |
| Linearity deviation |
± 50 µm |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 CDV |
| Profiles |
| Smart Sensor - SSP 4.1.1 | Measuring and Switching Sensor, 1 channel | | Common - I&D | Identification and Diagnosis | | Extension | Object detection, switches when value falls below the setpoint | | Function | Locator | | Function | ProductURI |
|
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
3.2 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1707 |
|
| Ambient temperature |
-25...70 |
| Protection |
IP 65; IP 66; IP 67; IP 68; IP 69K |
| EMC |
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | | EN 61000-4-3 HF radiated | 10 V/m | | EN 61000-4-4 Burst | 2 kV | | EN 61000-4-6 HF conducted | 10 V | | EN 55011 | class B |
|
| Vibration resistance |
| EN 60068-2-6 Fc | 20 g (10...3000 Hz) / 50 sweep cycles per frequency; 1 octave per minute in 3 axes |
|
| Shock resistance |
| EN 60068-2-27 Ea | 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|
| Continuous shock resistance |
| EN 60068-2-27 Eb | 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes |
|
| Fast temperature changes |
| EN 60068-2-14 Na | TA = -25 °C; TB = 70 °C; t1 = 30 min; t2 = < 10 s; 50 cycles |
|
| MTTF |
1341 |
| Embedded software included |
yes |
| UL approval |
| Ta | -25...70 °C | | Enclosure type | Type 1 | | voltage supply | Limited Voltage/Current | | UL approval number | A005 | | File number UL | E174191 |
|
| Weight |
69.6 |
| Housing |
Threaded type |
| Mounting |
non-flush mountable |
| Dimensions |
M18 x 1 / L = 60 |
| Thread designation |
M18 x 1 |
| Material |
housing: stainless steel (1.4404 / 316L); sensing face: LCP white; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L) |
| Tightening torque |
7 |
| Display |
| Switching status | 4 x LED, yellow | | SIO mode | | | output stage supplied with current | LED, yellow lights | | IO-Link mode | | | target in measuring range | LED, yellow lights |
|
| Items supplied |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
