| Number of inputs and outputs |
Number of analog outputs: 1 |
| Measuring range |
| 0...1 bar | 0...1000 mbar | 0...14.5 psi | 0...401.5 inH2O | 0...100 kPa |
|
| Design |
with capillary tube for pressure compensation |
| Application |
for industrial applications |
| Media |
Liquids |
| Medium temperature |
-10...50 |
| Min. bursting pressure |
|
| Pressure rating |
|
| Type of pressure |
relative pressure |
| Operating voltage |
10...30 DC |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Number of inputs and outputs |
Number of analog outputs: 1 |
| Total number of outputs |
1 |
| Output signal |
analog signal |
| Number of analog outputs |
1 |
| Analog current output |
4...20 |
| Max. load |
700; (Ub = 24 V; (Ub - 10 V) / 20 mA) |
| Short-circuit protection |
yes |
| Measuring range |
| 0...1 bar | 0...1000 mbar | 0...14.5 psi | 0...401.5 inH2O | 0...100 kPa |
|
| Repeatability |
< 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation |
< 0,5 (BFSL) /1; (incl. linearity, zero and span error (limit value setting)) |
| Linearity deviation |
< 0,2 (BFSL) |
| Long-term stability |
< 0,2; (per year) |
| Temperature coefficient zero point |
< ± 0,2; (0...50 °C) |
| Temperature coefficient span |
< ± 0,2; (0...50 °C) |
| Ambient temperature |
-10...50 |
| Storage temperature |
-30...80 |
| Protection |
IP 68 |
| MTTF |
403 |
| Pressure equipment directive |
sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight |
1284.55 |

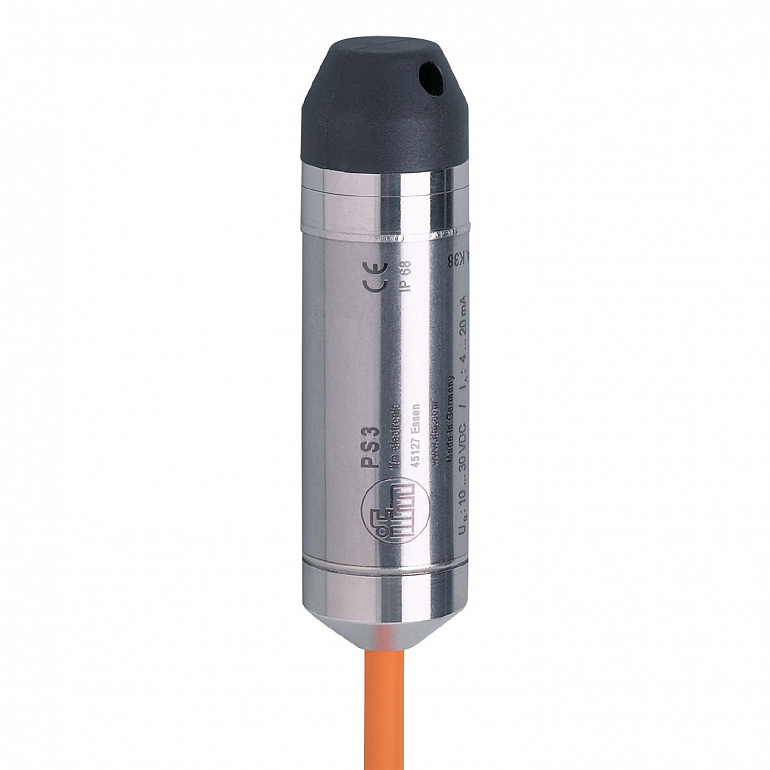

| Housing |
tubular |
| Dimensions |
Ø 27 / L = 100 |
| Material |
stainless steel (1.4571/316Ti ); PA |
| Pack quantity |
1 pcs. |
| Connection |
Cable: 15 m, PUR, Ø 7.5 mm; Core insulation:, PVC |
