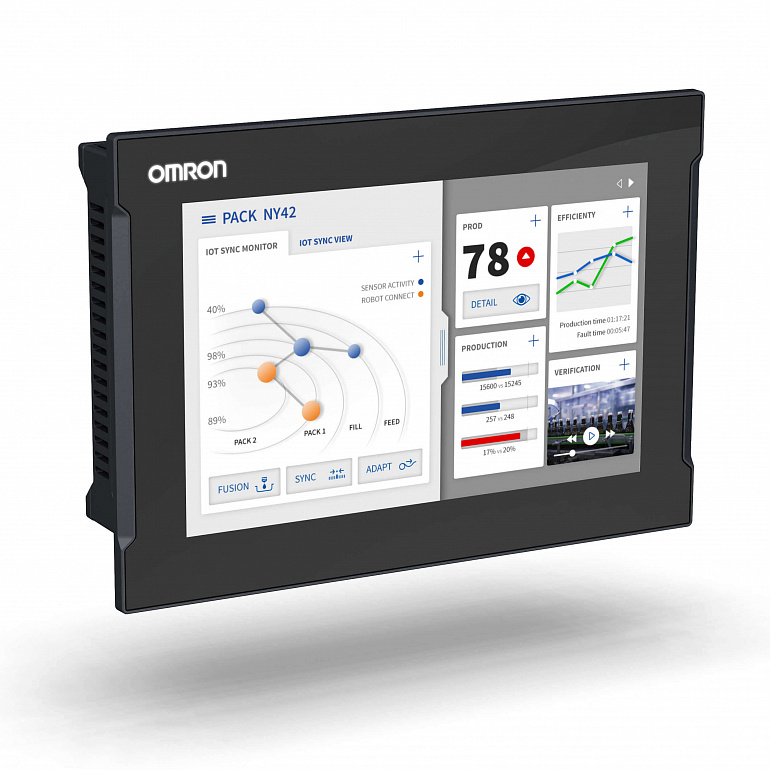

Industrial Panel PC with Intel® Celeron® 3965U, 4 GB DRAM (non-ECC), 128 GB SSD iMLC, WIN 10 IoT 2019 (64-bit), 1 PCIe + 2 drive slots, extra DVI-D, 12.1" (1280x800) display with capacitive touchscreen, build-in type
Характеристики
| Screen diagonal | 12.1 in |
| Processor family | Intel® Celeron® |
| Processor specification | 3965U (2.2 GHz) |
| Cooling method | Passive cooling (fanless) |
| Memory | 4 GB RAM (non ECC) |
| Storage | 128 GB SSD MLC |
| Operating system | Windows 10 IoT Enterprise 2019 LTSC - 64 bit |
| Expansion slot | 1 x PCIe slot (X2 lanes) |
| Modular port | DVI-D |
| Video output | DVI-I |
| Material housing | Aluminium, black |
| Display ratio | 16:10 |
| Number of pixels, vertical | 800 |
| Number of pixels, horizontal | 1280 |
Все характеристики
| Specifications | |
| Screen diagonal | 12.1 in |
| Max. number of motion axes | 0 |
| Processor family | Intel® Celeron® |
| Processor specification | 3965U (2.2 GHz) |
| Cooling method | Passive cooling (fanless) |
| Memory | 4 GB RAM (non ECC) |
| Storage | 128 GB SSD MLC |
| Operating system | Windows 10 IoT Enterprise 2019 LTSC - 64 bit |
| Expansion slot | 1 x PCIe slot (X2 lanes) |
| Modular port | DVI-D |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, USB |
| Video output | DVI-I |
| Material housing | Aluminium, black |
| Display ratio | 16:10 |
| Number of pixels, horizontal | 1280 |
| Number of pixels, vertical | 800 |
| Type of display | TFT |
| Touchscreen technology | Projected capacitive |
| Mounting method | Build-in |
| Degree of protection (IP), front side | IP65 |
| Operating temperature | 0-55 °C |
| Supply voltage DC | 20.4-28.8 V |
| Height of the front | 234 mm |
| Width of the front | 332 mm |
| Height of panel cutout | 216 mm |
| Width of panel cutout | 314 mm |
| Built-in depth | 97 mm |
| Product Weight (unpacked) | 5600 g |
